APEFOX RH20
APEFOX RH20
Regular price
€1.790,00 EUR
Regular price
Sale price
€1.790,00 EUR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

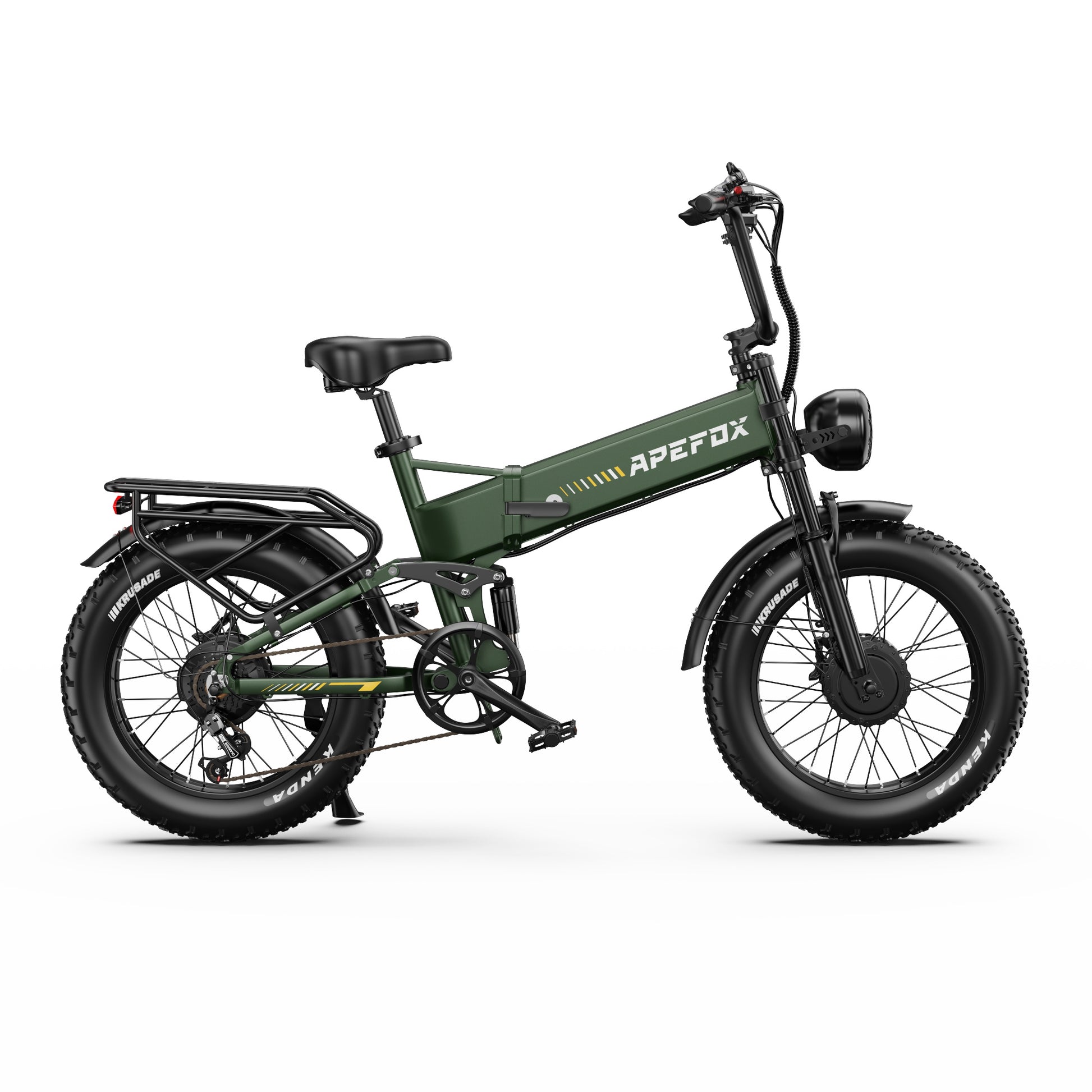

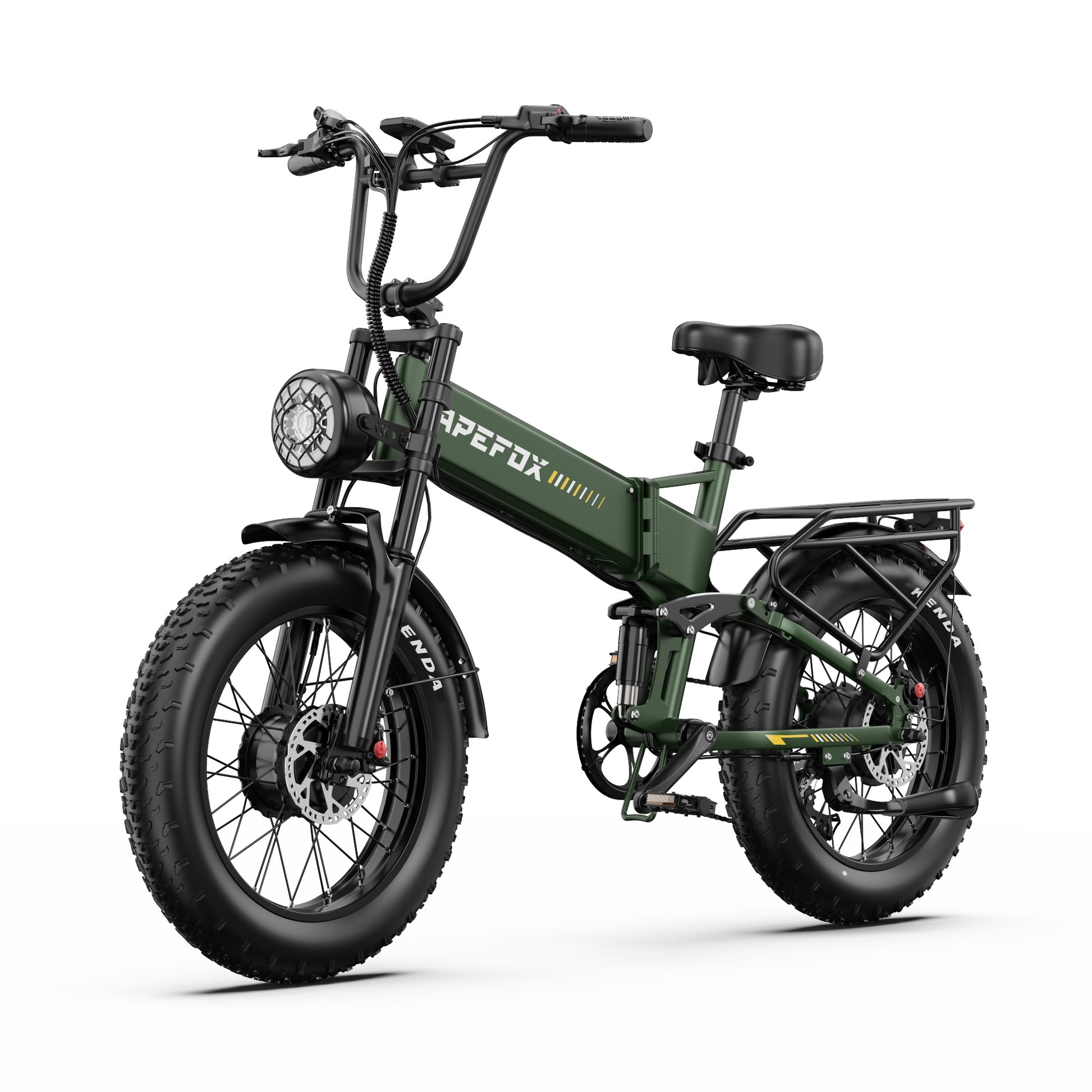

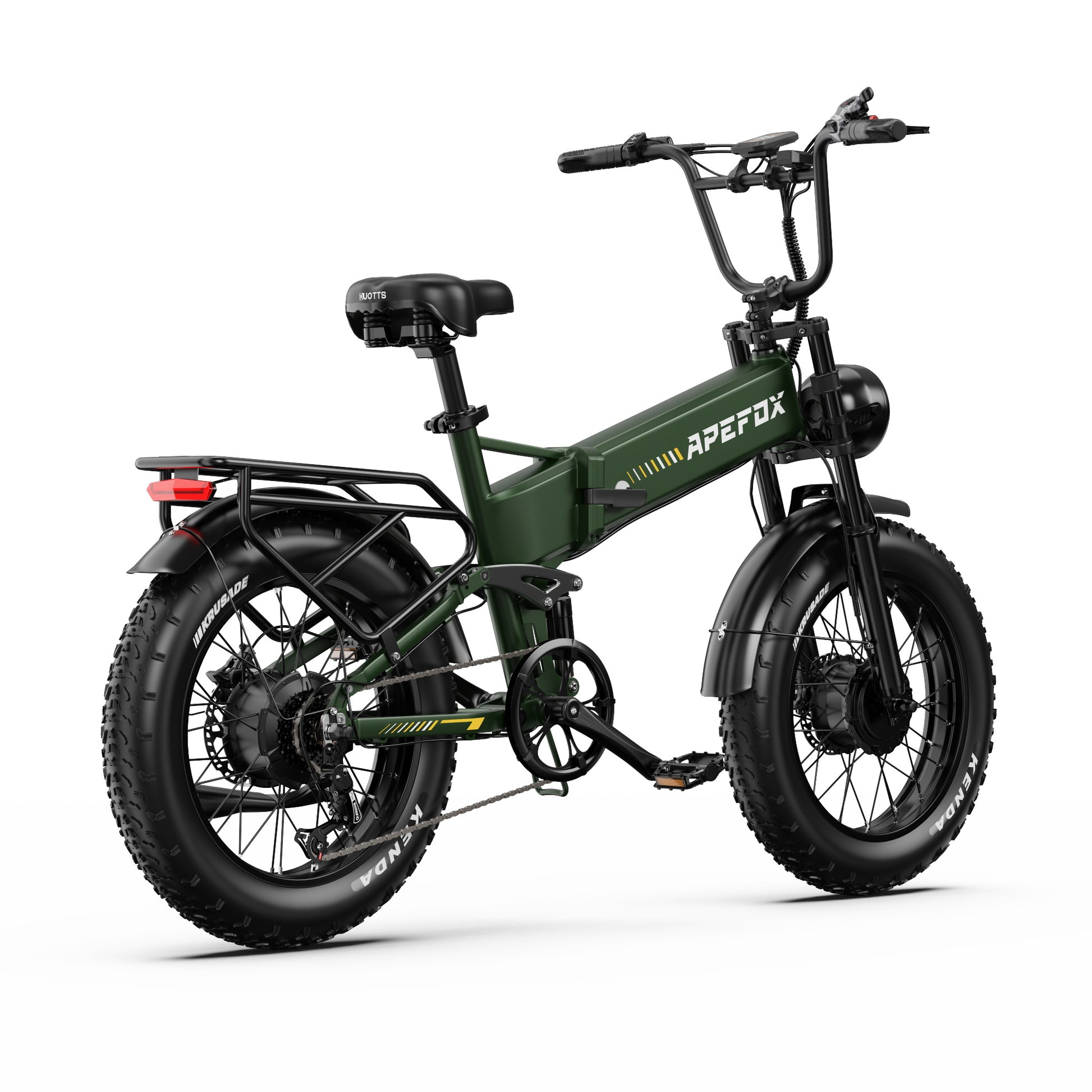

Apefox RH20 Fat Tyre Folding Electric Bike
The Apefox RH20 is a powerful folding fat tyre electric bike designed for riders who want stability, comfort and strong performance across city roads, rough paths and mixed terrain. With dual 500W motors, a large 48V 22.5Ah battery, hydraulic brakes and 20×4.0 Kenda tyres, it is built for confident riding and practical everyday use.
48V 22.5AhBattery
500W × 2Dual Motor
80–100kmPAS Range
20×4.0Kenda Tyres
Key Features
- Dual Motor System — 48V 500W × 2 setup for strong pulling power and off-road capability.
- Large 48V 22.5Ah Battery — high-capacity battery for longer distance riding.
- Up to 80–100km Range — in pedal-assist mode, depending on rider weight, terrain and conditions.

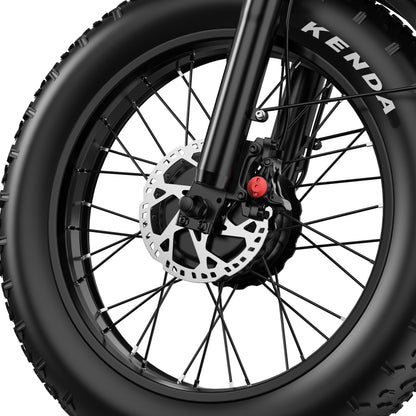

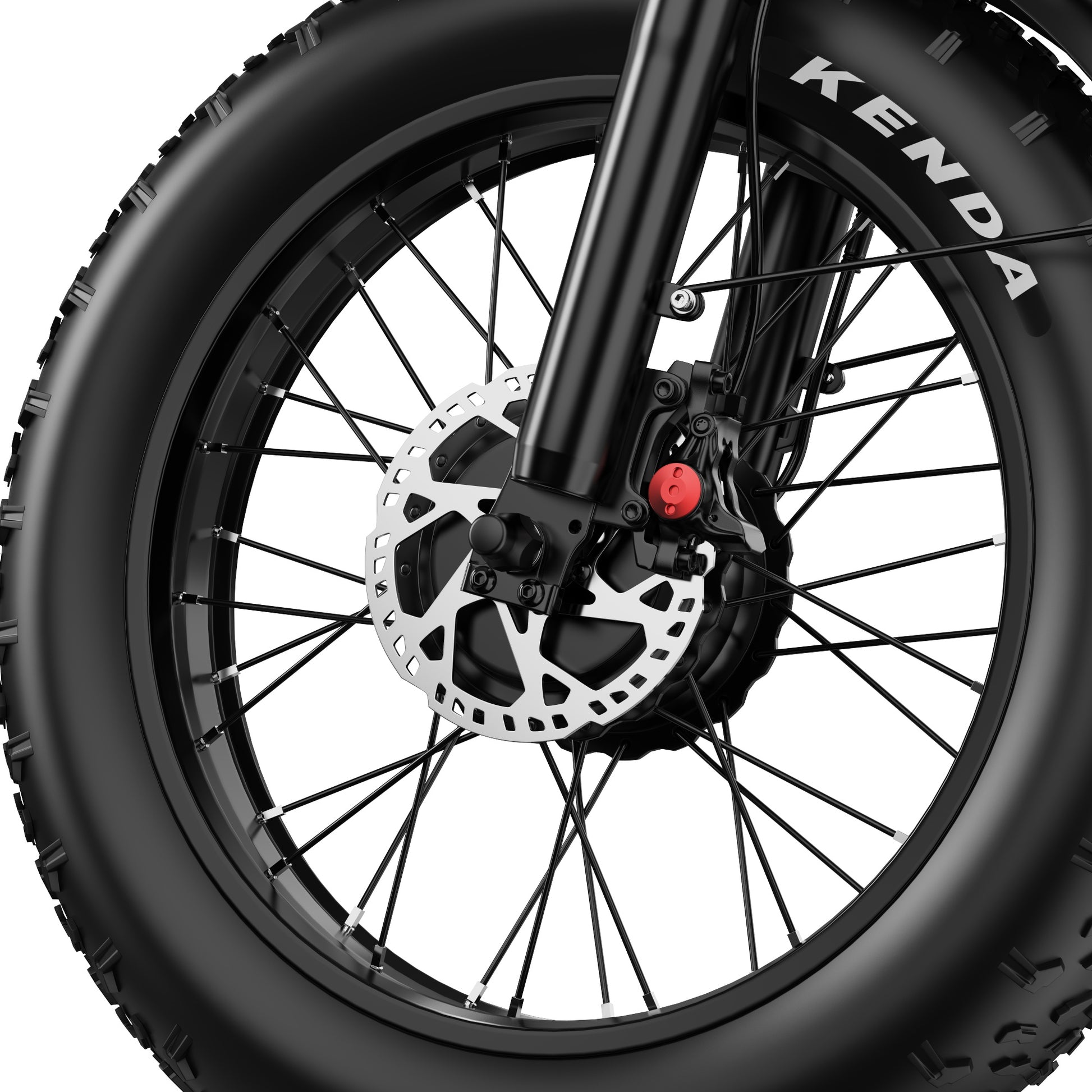

- Hydraulic Dual-Piston Brakes — strong and controlled braking performance.
- 20×4.0 Kenda Fat Tyres — excellent grip, comfort and stability on mixed terrain.

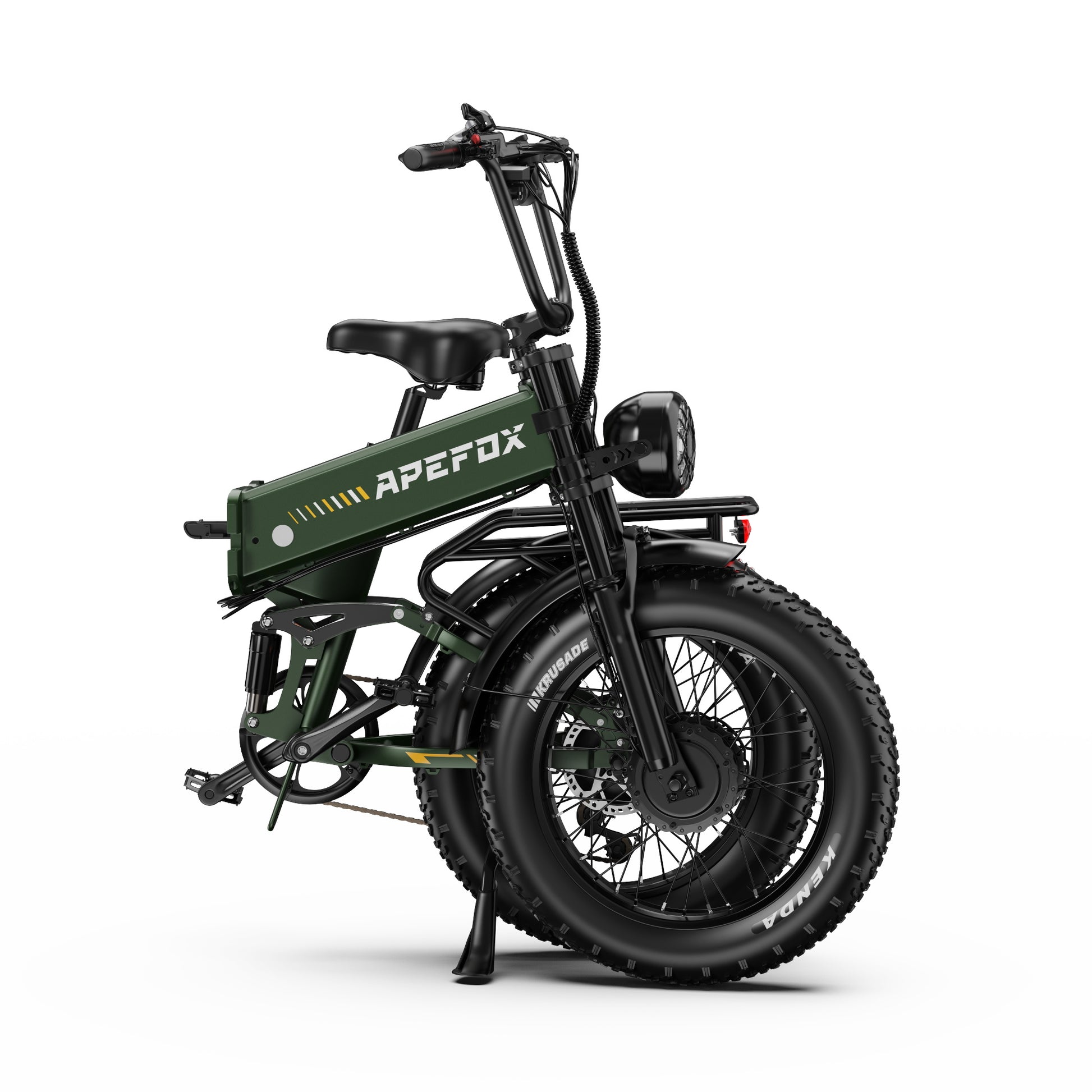

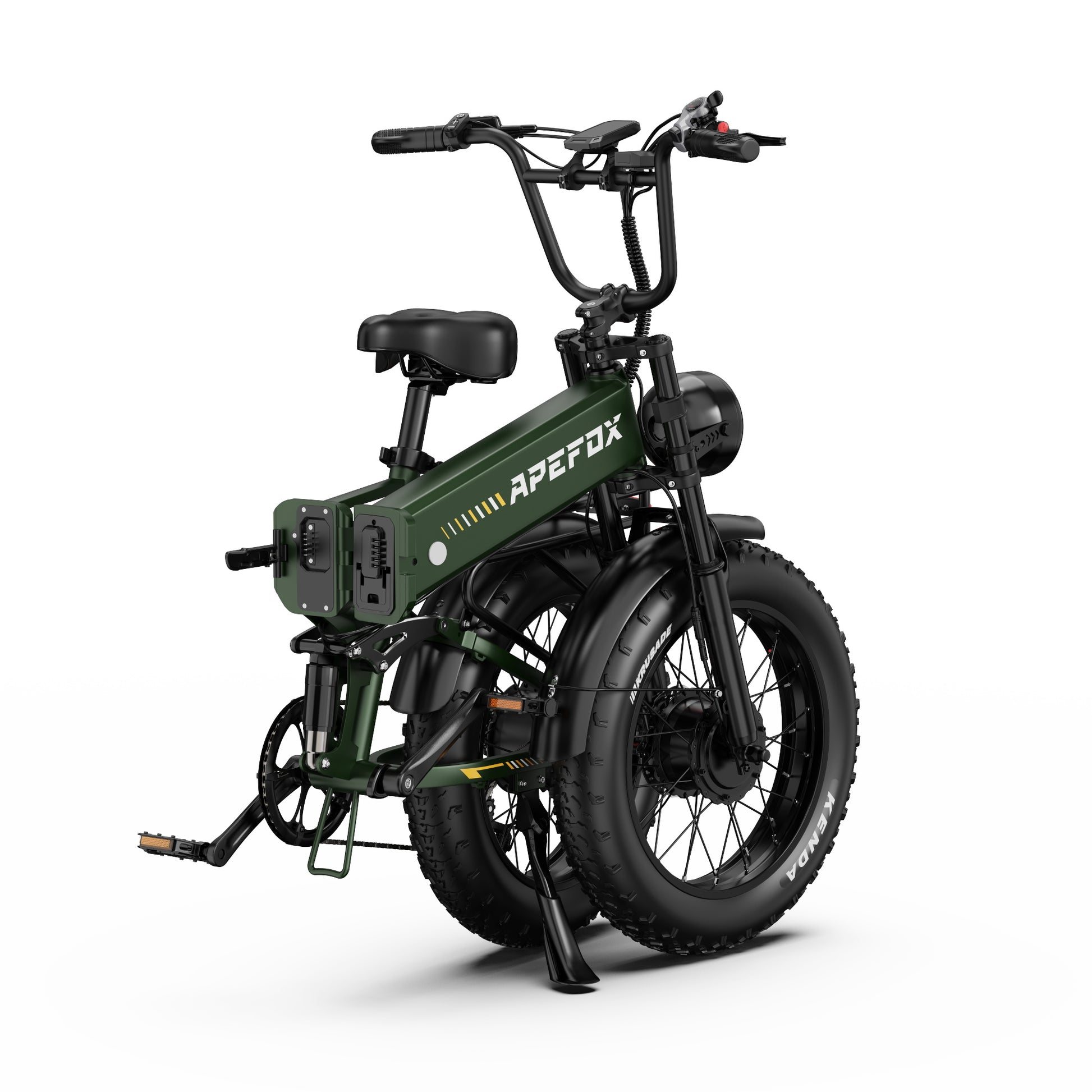

- Foldable Frame — easier storage and transport compared with a full-size fat bike.
- 80mm Front Suspension Fork — improved comfort on rough surfaces.

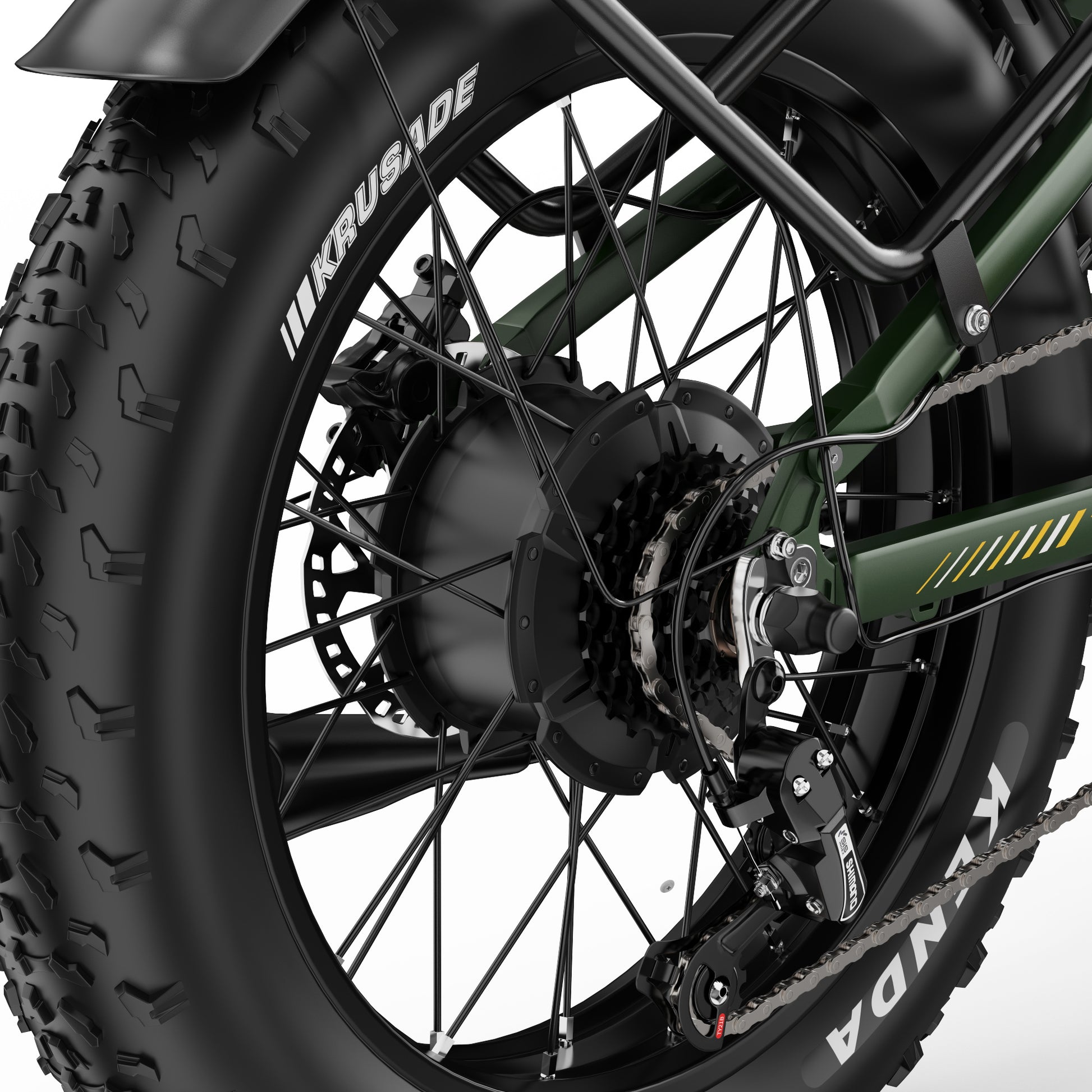

- Shimano 7-Speed Drivetrain — practical gear range for city and hill riding.
- Full Front & Rear Fenders — better protection for daily commuting.
- IPX4 Water Resistance — suitable for light rain and normal commuting conditions.
Technical Specifications
| Model | Apefox RH20 |
| Bike Type | Folding Fat Tyre Electric Bike |
| Frame | Aluminium Alloy |
| Motor | 48V 500W × 2 Dual Motor |
| Battery | 48V 22.5Ah Lithium Battery |
| Cells | 18650 Cells, 2600mAh |

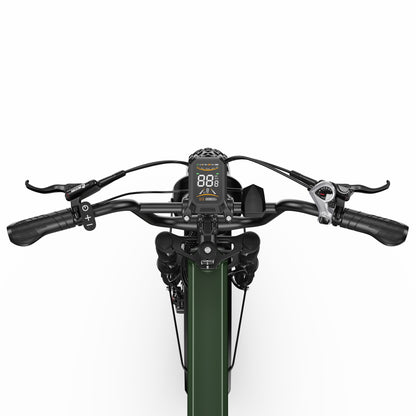

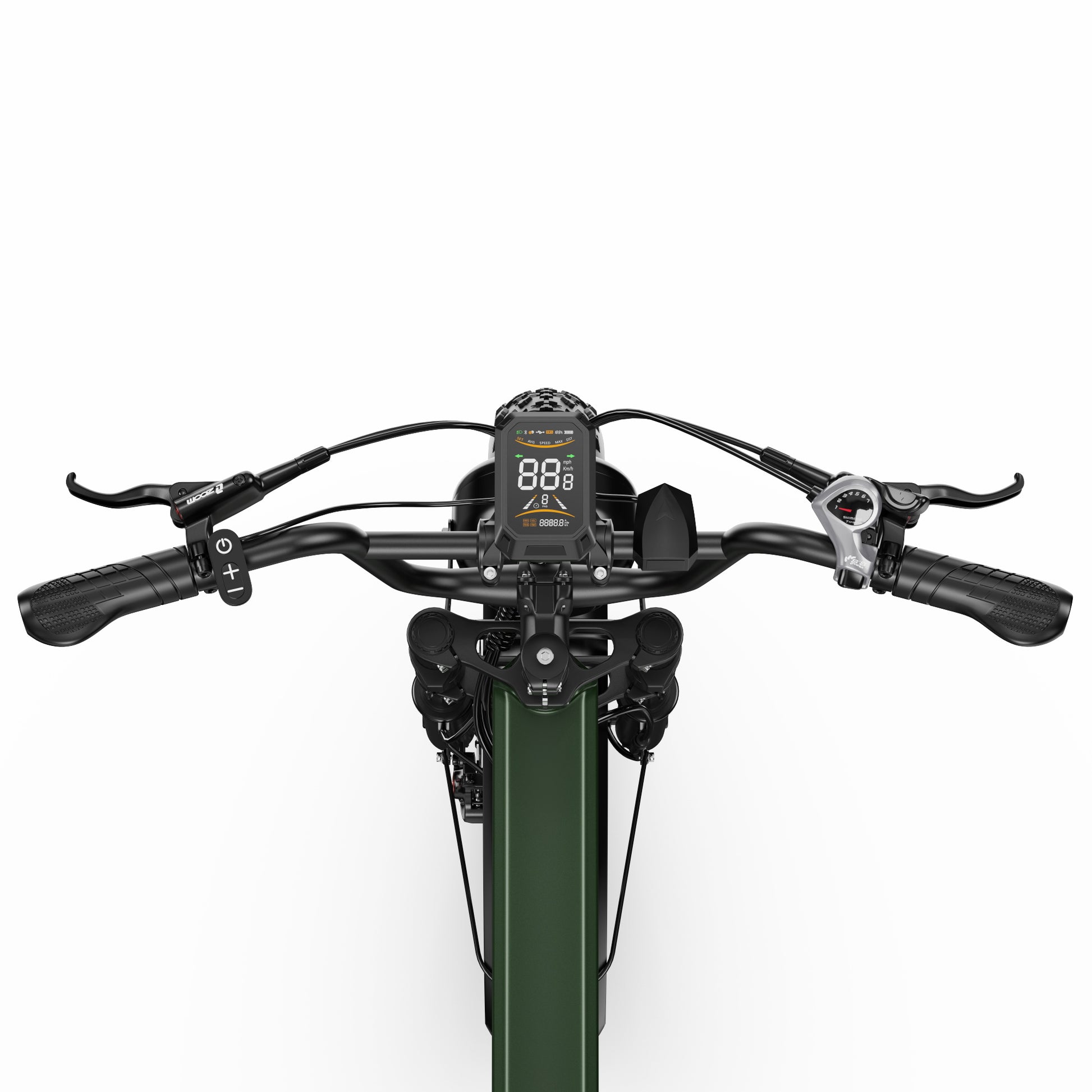

| Display | XF-013 |
| Sensor | Speed Sensor |
| Gears | Shimano 1×7 Speed |
| Brakes | Hydraulic Dual-Piston Brakes |
| Suspension | Front Fork, 80mm Travel |
| Tyres | 20 × 4.0 Kenda Fat Tyres |
| Fenders | Full Front & Rear Iron Fenders |
| Range | Approx. 50–60km Pure Electric / 80–100km Pedal Assist |
| Speed Limit | 25km/h Default |
| Walking Mode | 6km/h Default |
| Climbing Angle | Up to 30° |
| Charger | 54.6V 2A |
| Charging Time | Approx. 7–8 Hours |
| Waterproof Rating | IPX4 |

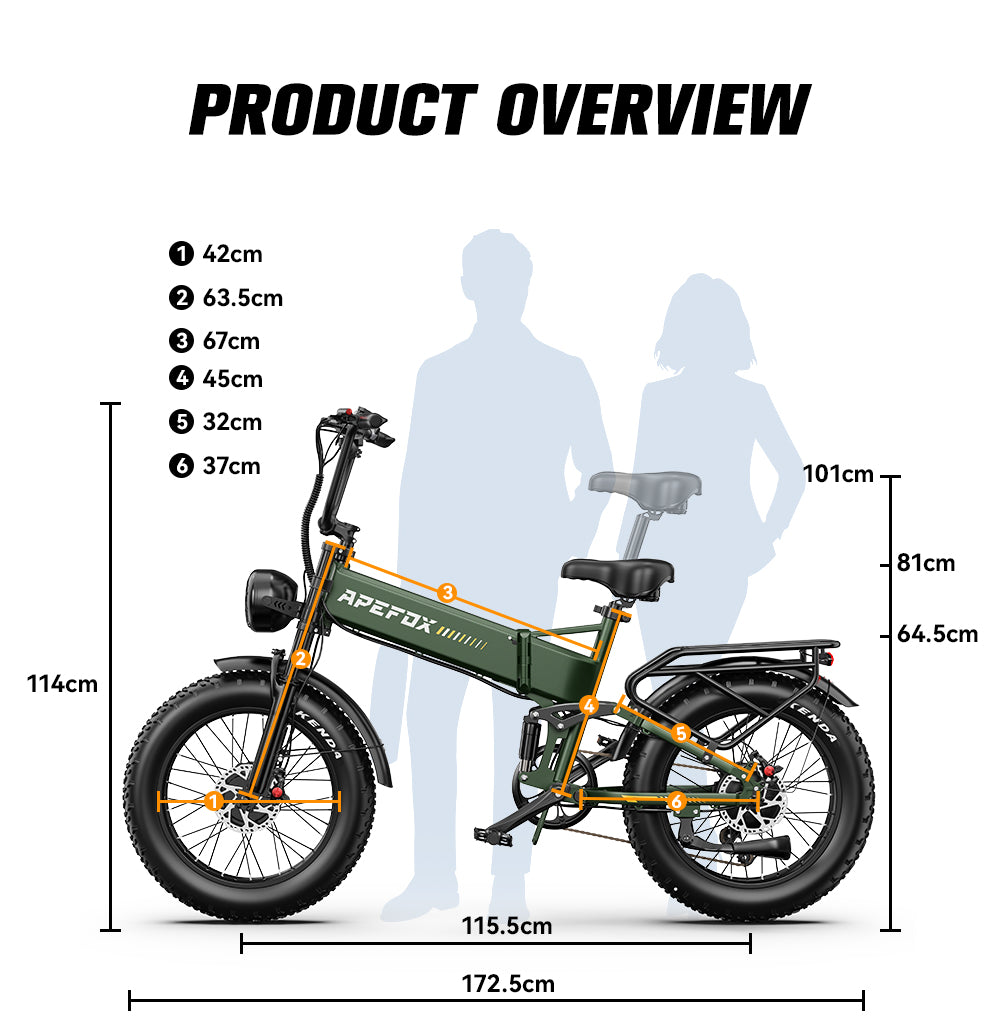

| Product Size | 186 × 68 × 108cm |
| Net Weight | 37.5kg |
| Gross Weight | 45.26kg |
| Maximum Load | 120kg |
| Recommended Rider Height | 160–200cm |
Package Included
- Charger
- User manual
- Tool kit
- Handlebar
- Pedals
- Quick-release axle
- Motor shaft cover
- Air pump
Important Notes
- The throttle comes separately and requires self-installation.
- Rear light includes high-intensity brake light function.

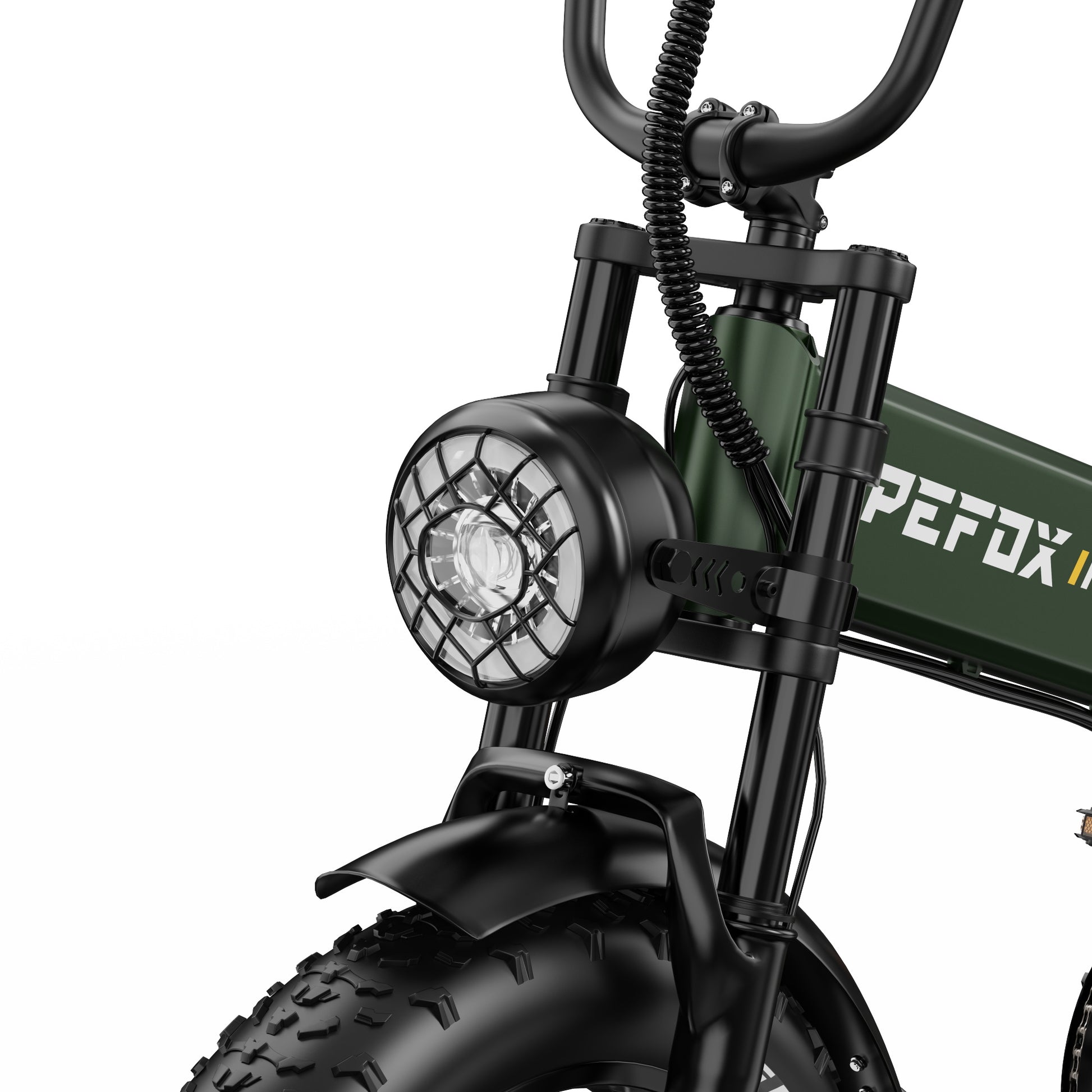

- Headlight is not K-code compatible.
- This model does not support connection to the Onesport app.
Why Buy From MVB E-BIKE SHOP?
Buying from MVB E-BIKE SHOP means real local support in Ireland. We provide professional assembly, diagnostics, servicing, repairs, maintenance and after-sales assistance from dedicated e-bike specialists.
Perfect for riders looking for a powerful folding fat tyre e-bike for commuting,
rough roads, hills, countryside rides and all-terrain everyday use.
