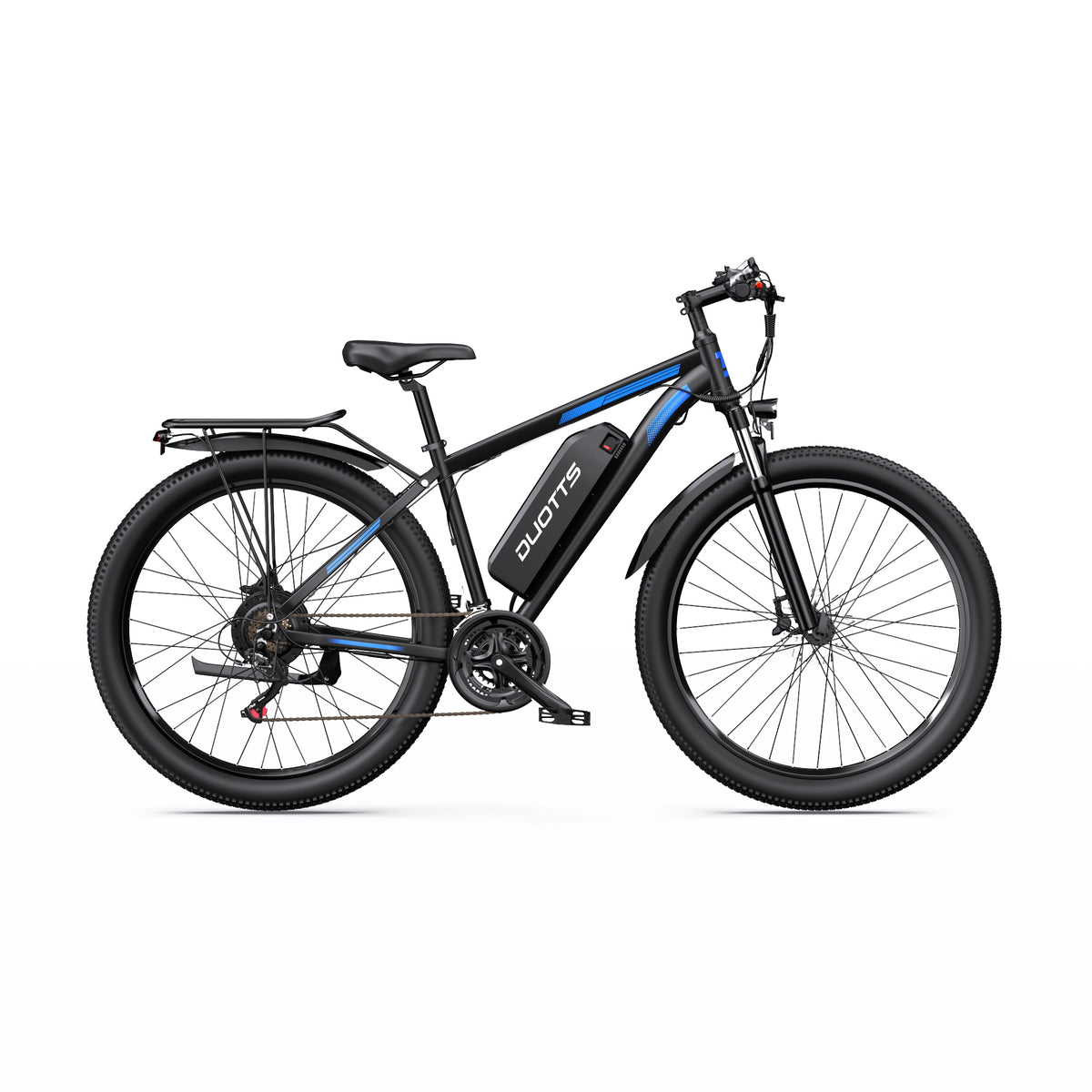

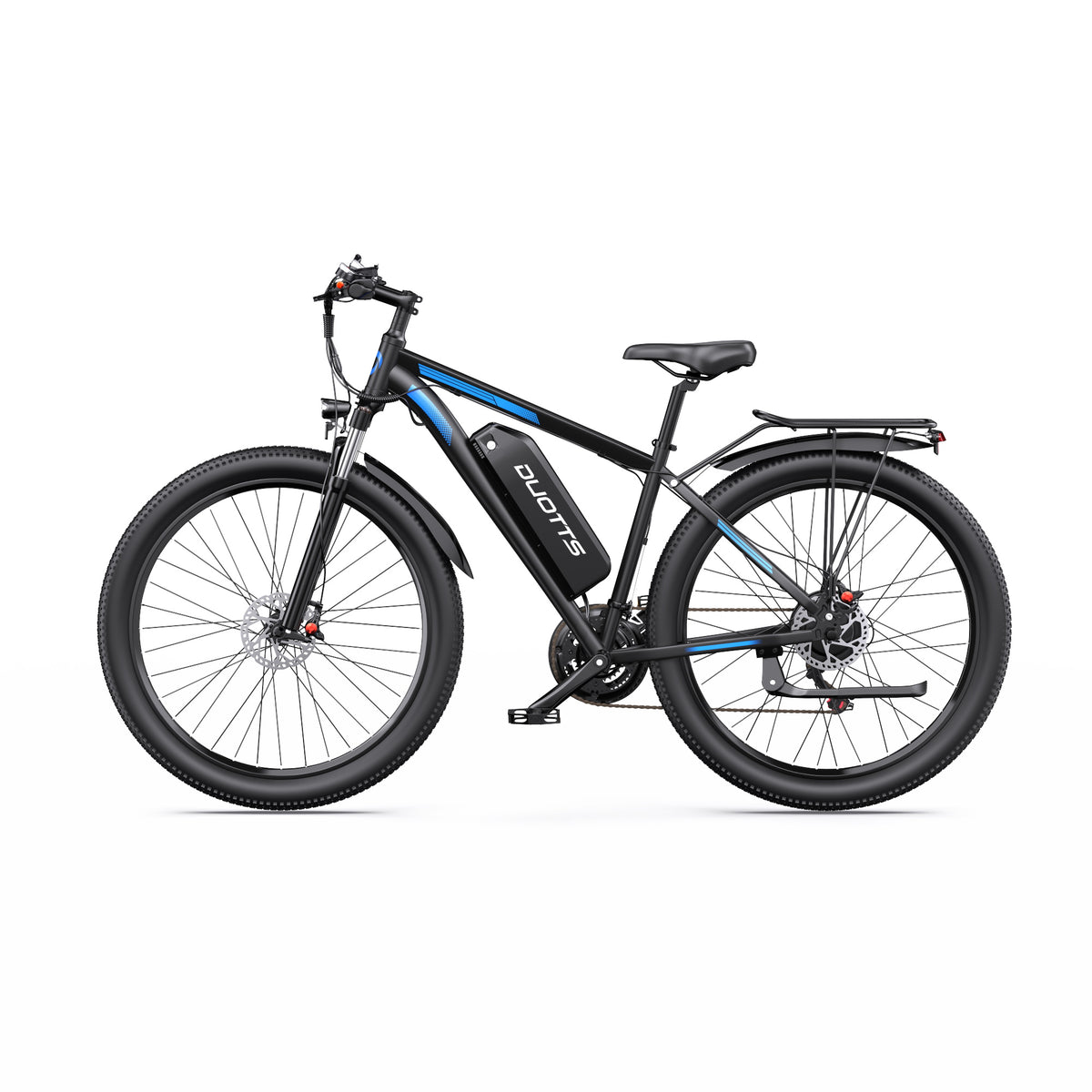

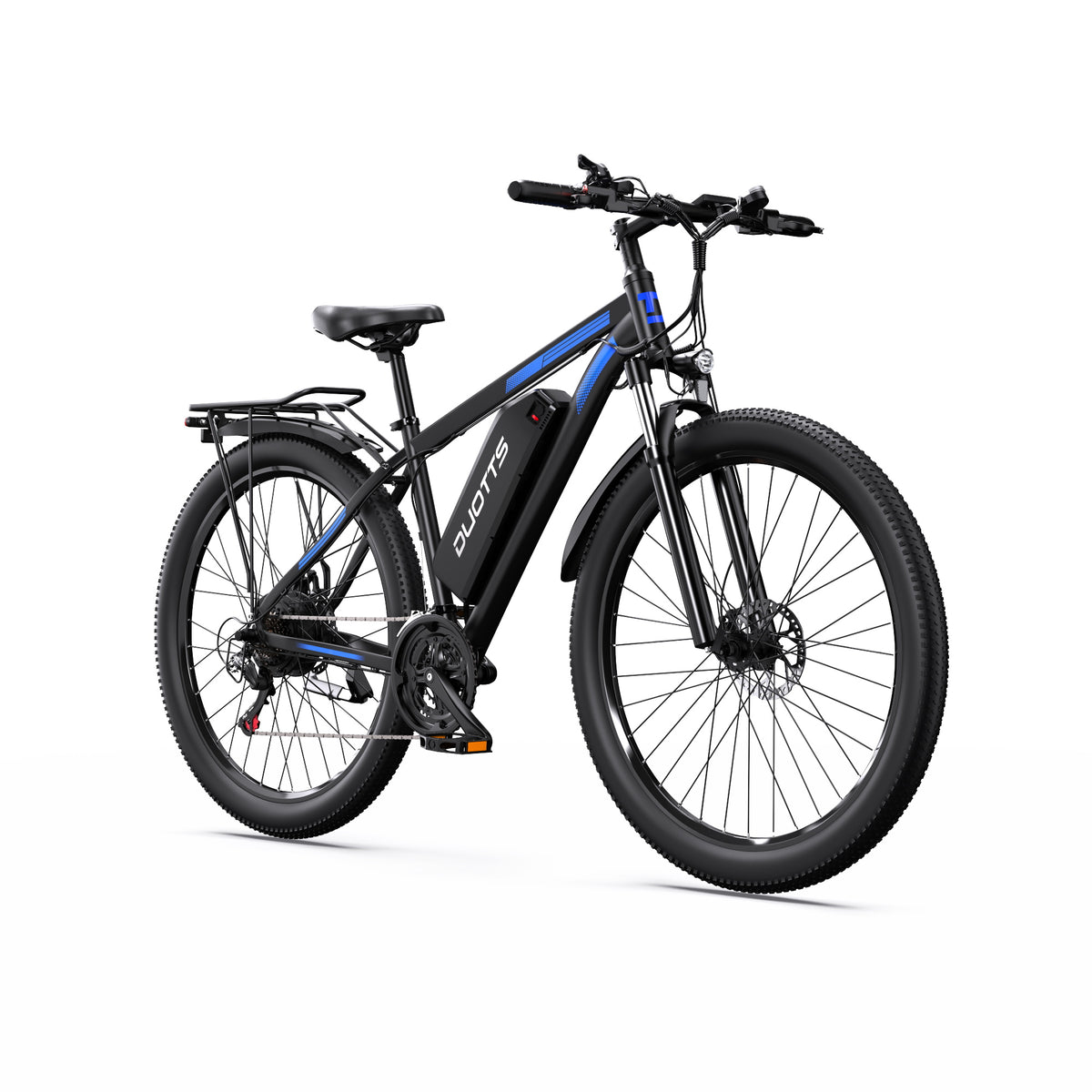

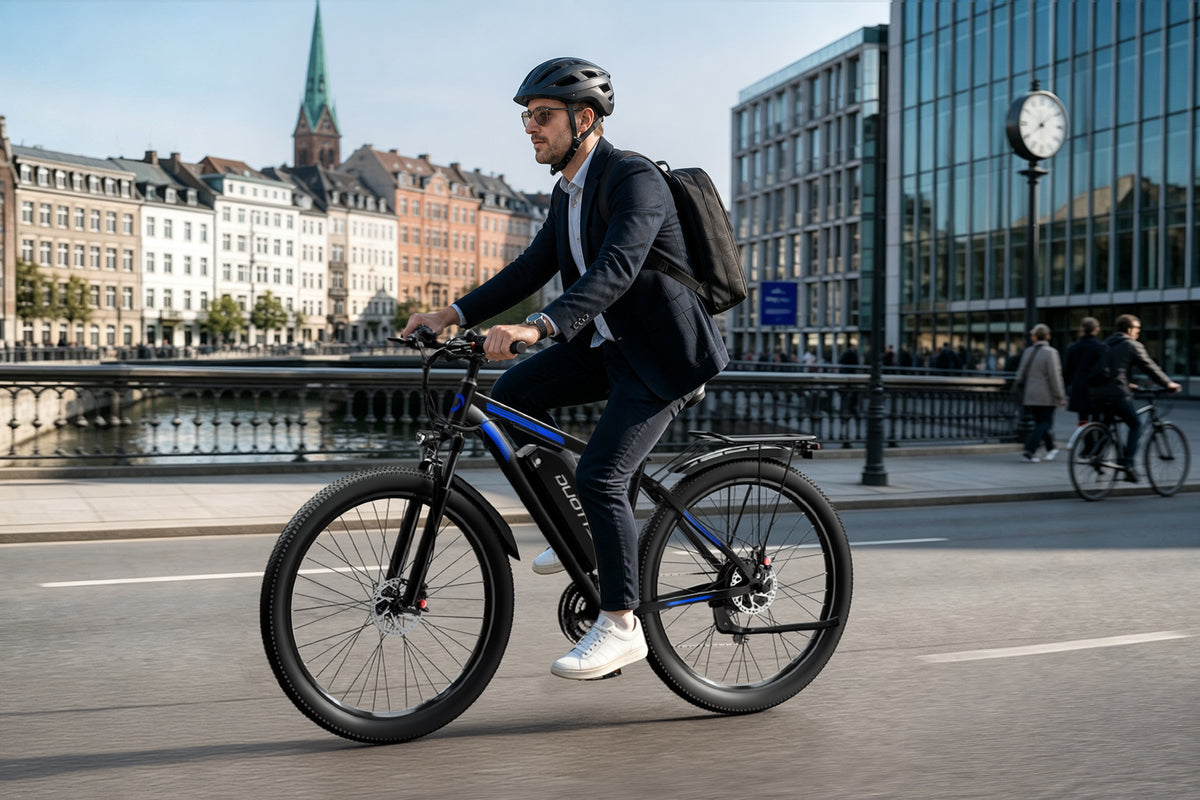

DUOTTS C29-M Electric Bike
The DUOTTS C29-M pairs a 750W rear hub motor with a larger 48V 15Ah battery and 27.5-inch wheels. With Shimano Tourney 21-speed gearing, hydraulic disc brakes and 100mm front suspension, it is designed for comfortable riding and longer journeys on suitable routes.
750WRear Hub Motor
720WhBattery
70–80kmPedal-Assist Range
27.5-inchWheels
Key Features

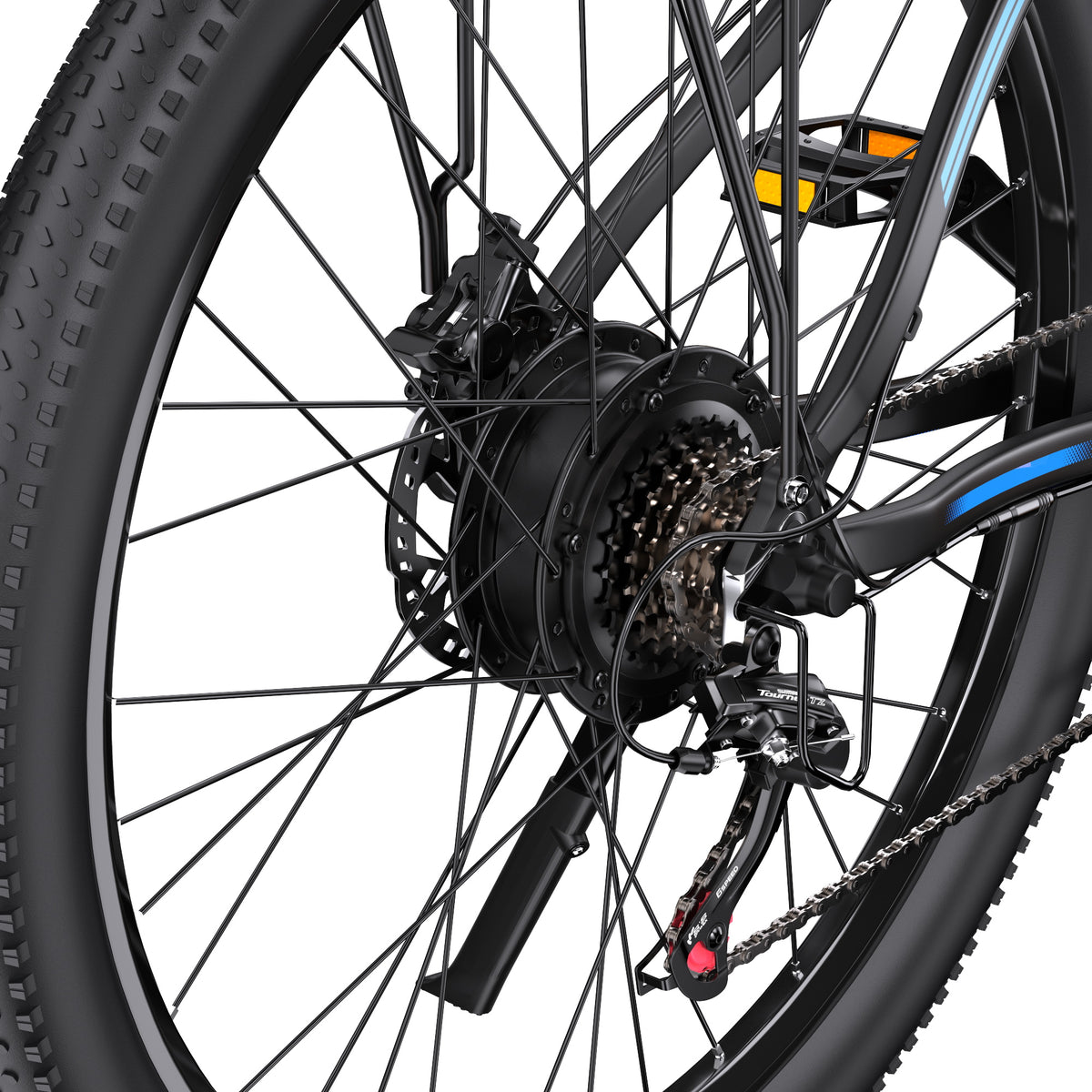

- 750W Rear Hub Motor — 48V rear hub motor for electric assistance.
- 48V 15Ah Battery — 720Wh nominal capacity using Dongci 21700 cells.
- Pedal-Assist Range — Approximately 70–80km in pedal-assist mode, subject to riding conditions.
- Hydraulic Disc Brakes — ZOOM hydraulic brakes with 160 × 2.3mm rotors.

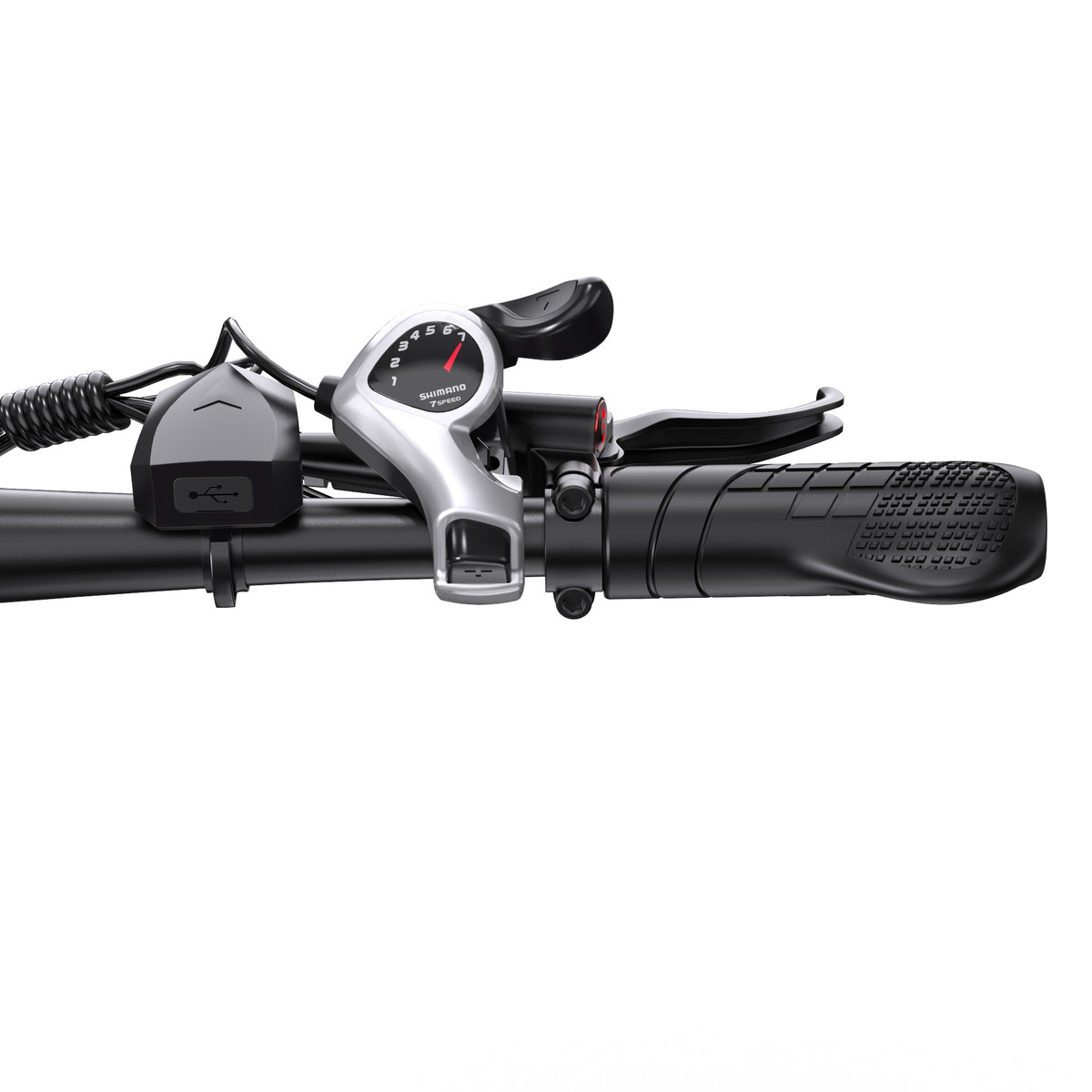

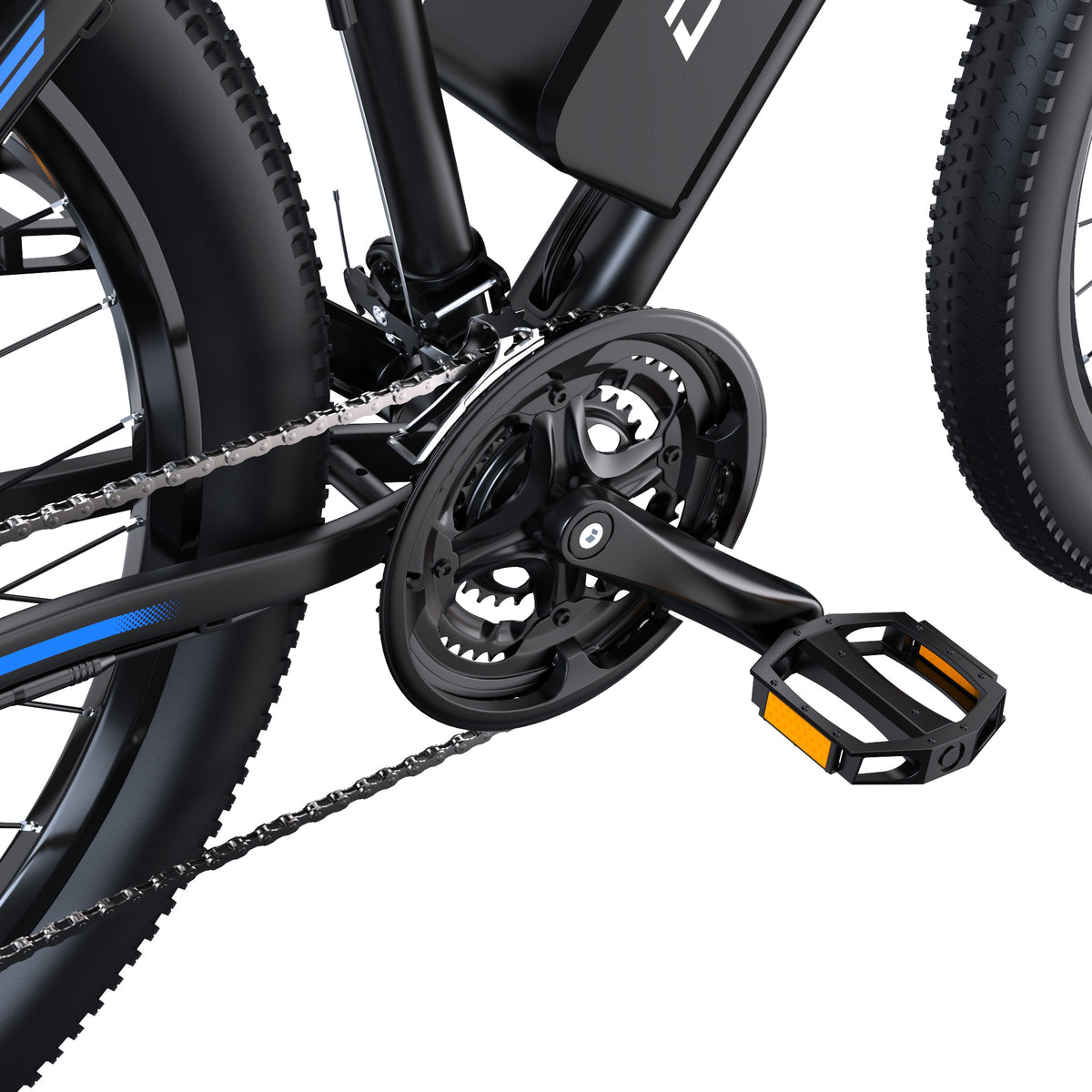

- 21-Speed Drivetrain — Shimano Tourney 3×7-speed gears.

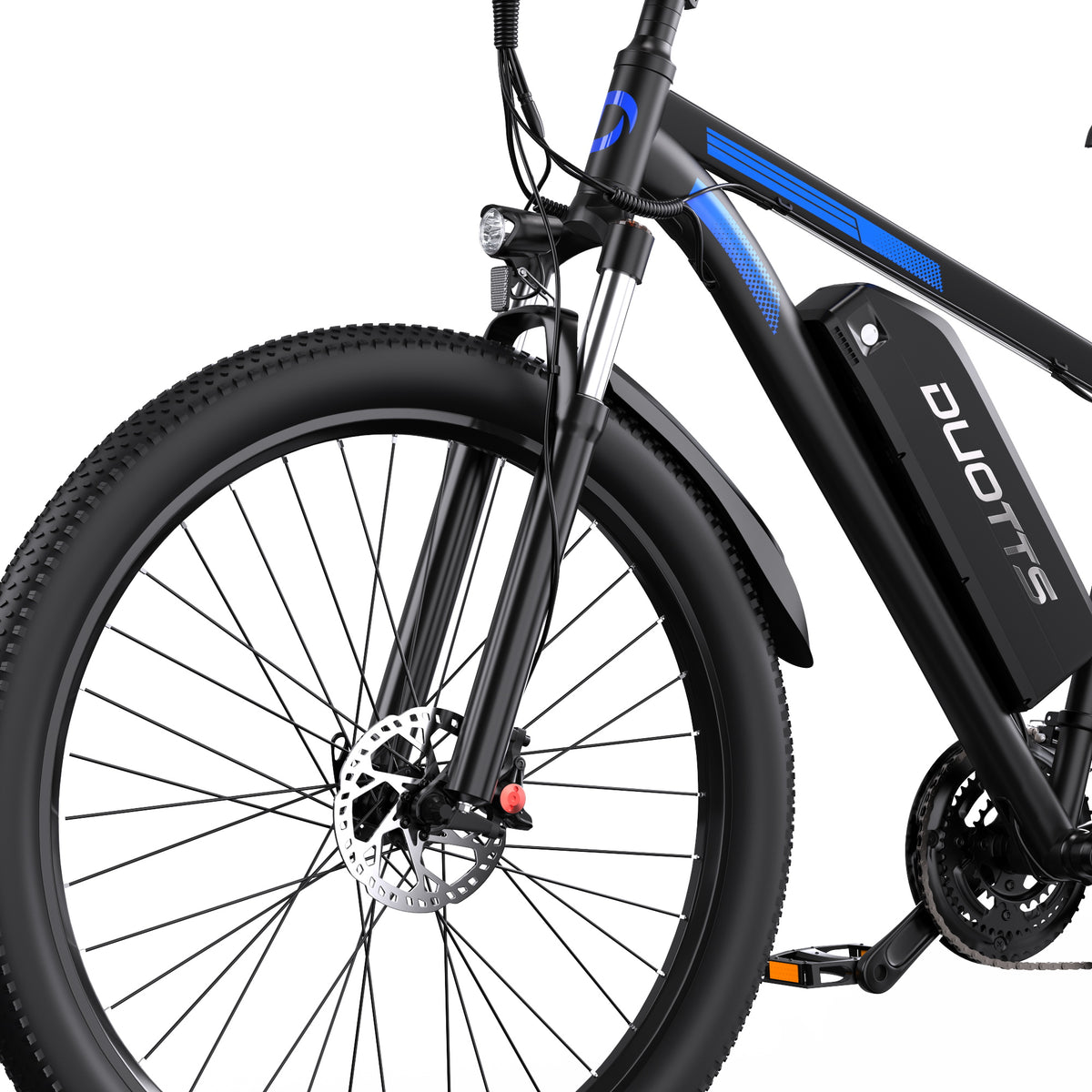

- Front Suspension — 100mm fork travel with a lockout function.
- Bluetooth Display — S869 display with Bluetooth and app connectivity.
- 27.5-Inch Tyres — 27.5 × 2.1-inch tyres, plus front and rear mudguards.
Technical Specifications
| Model | DUOTTS C29-M Electric Bike |
| Frame | Aluminium alloy |
| Motor | 48V 750W rear hub motor |
| Sensor | Speed sensor |
| Display | S869 display with Bluetooth and app connectivity |
| Folding | Non-folding |
| Front Suspension | 100mm travel; lockout; non-adjustable |
| Rear Suspension | None |
| Drivetrain | Shimano Tourney 3×7-speed |
| Brakes | ZOOM hydraulic disc brakes; 160 × 2.3mm rotors |
| Mudguards | Front and rear plastic mudguards |
| Factory Assist Speed Limit | 25km/h |
| Factory Throttle Speed Limit | 25km/h |
| Assist Levels | 0–5 (level 0: no motor assistance) |
| Water Resistance | IPX4 |
| Charger | 54.6V 2A |
| Charging Time | 7–8 hours |
| Maximum Load | 150kg |
| Battery | 48V 15Ah (720Wh); Dongci 21700 4500mAh cells |
| Pure Electric Range | Approximately 35–40km |
| Pedal-Assist Range | Approximately 70–80km |
| Tyres | 27.5 × 2.1 inches; 30 TPI; no reflective strips |
| Recommended Rider Height | 165–190cm |
| Net Weight | 25kg |
| Gross Weight | 32kg |
| Bike Dimensions | 178 × 68 × 104cm |
| Carton Dimensions | 146 × 24 × 77cm |

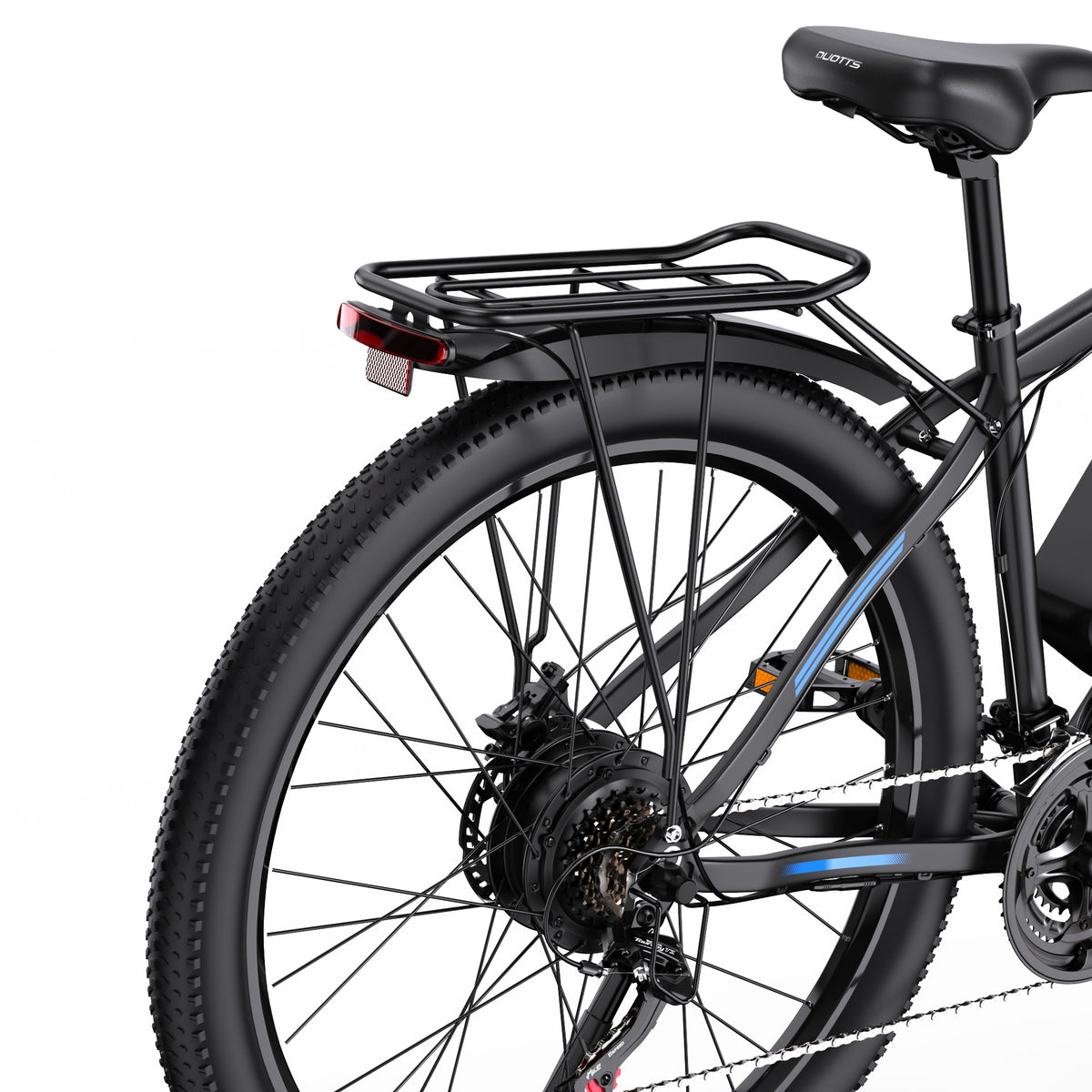

| Rear Light | K-code rear light with brake-light function |
| Throttle | Supplied separately; installation required |
What's Included
- Charger and user manual
- 16-in-1 installation tool
- Twist-grip throttle
- Pedals and quick-release axle
- Motor shaft protective sleeve
- Air pump and phone bag
