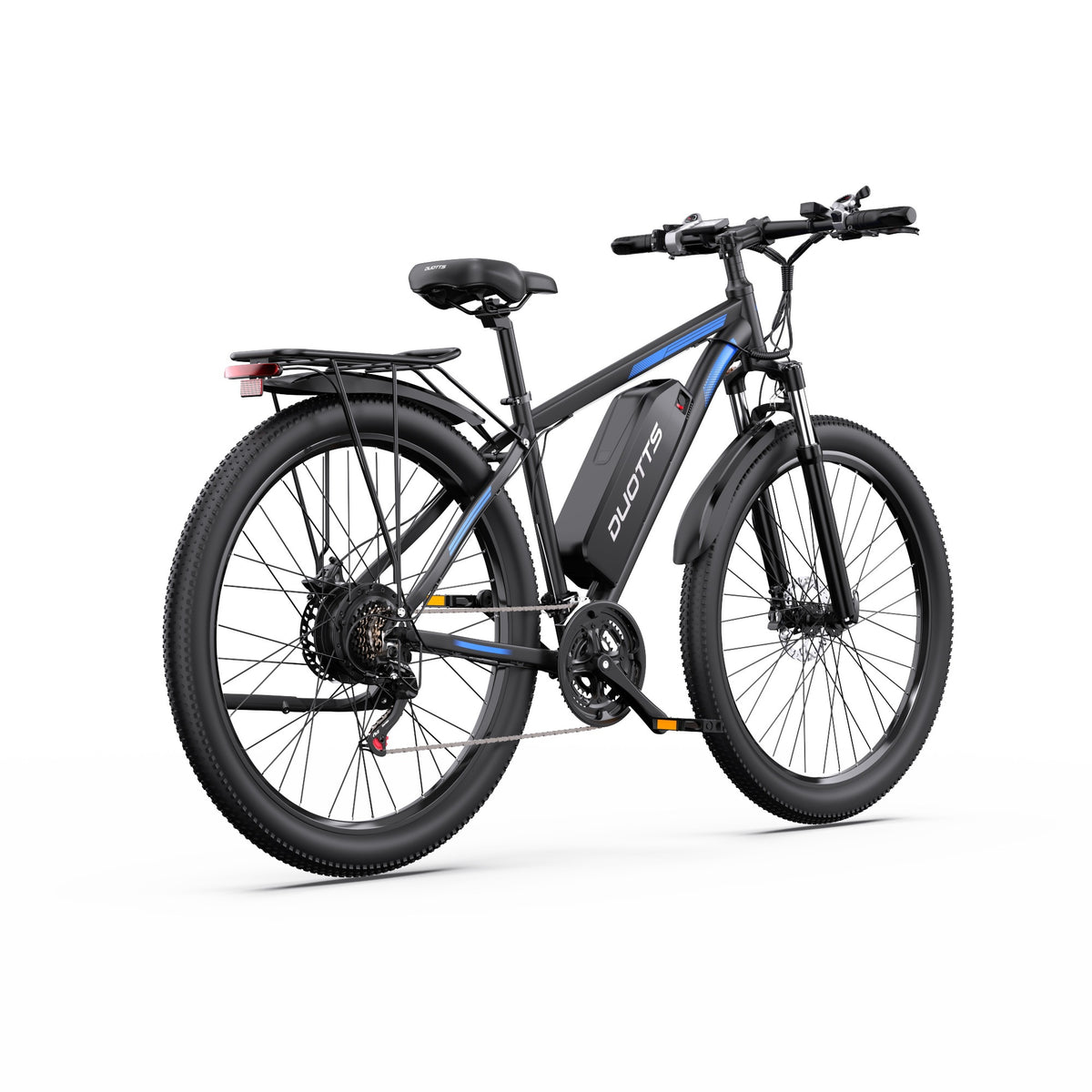

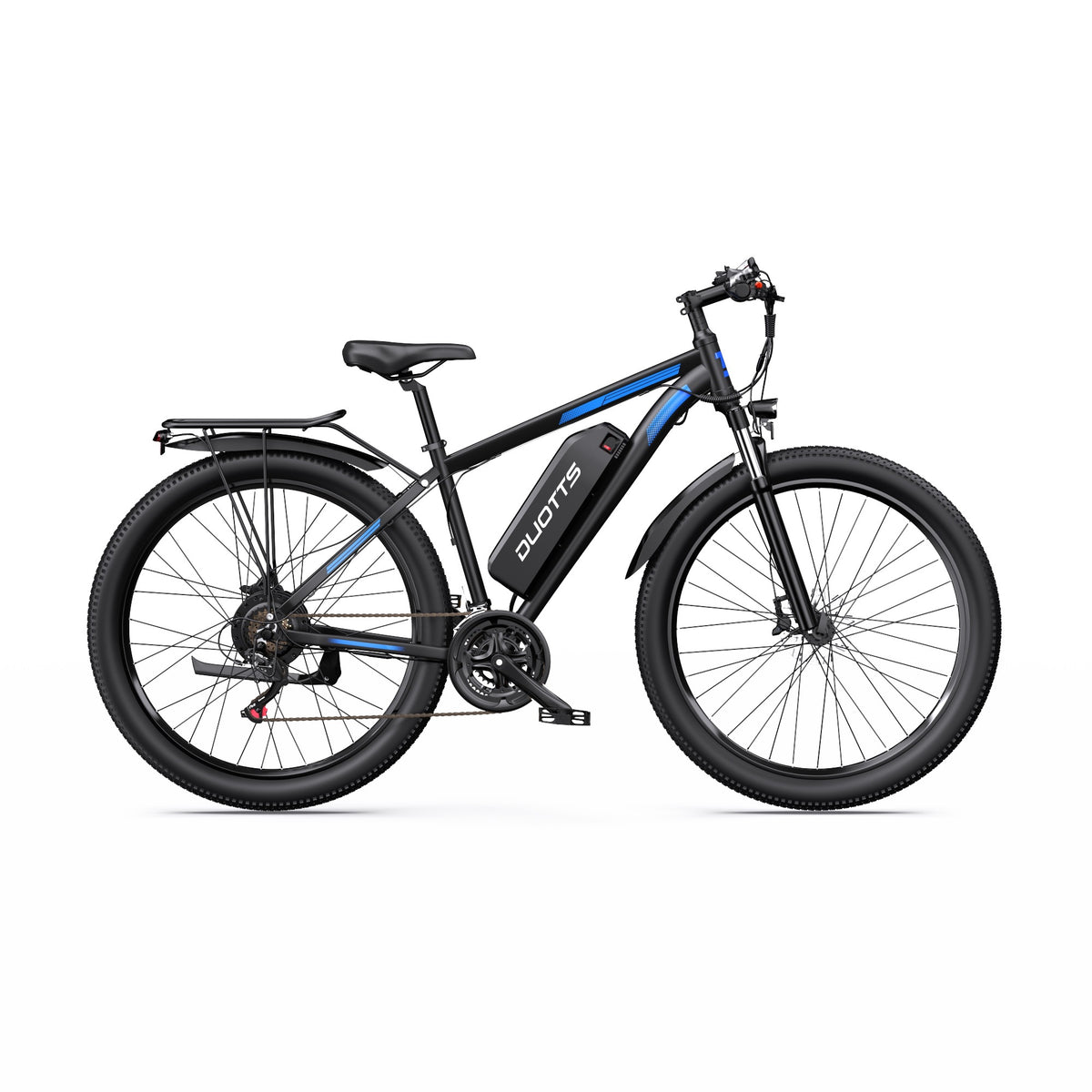

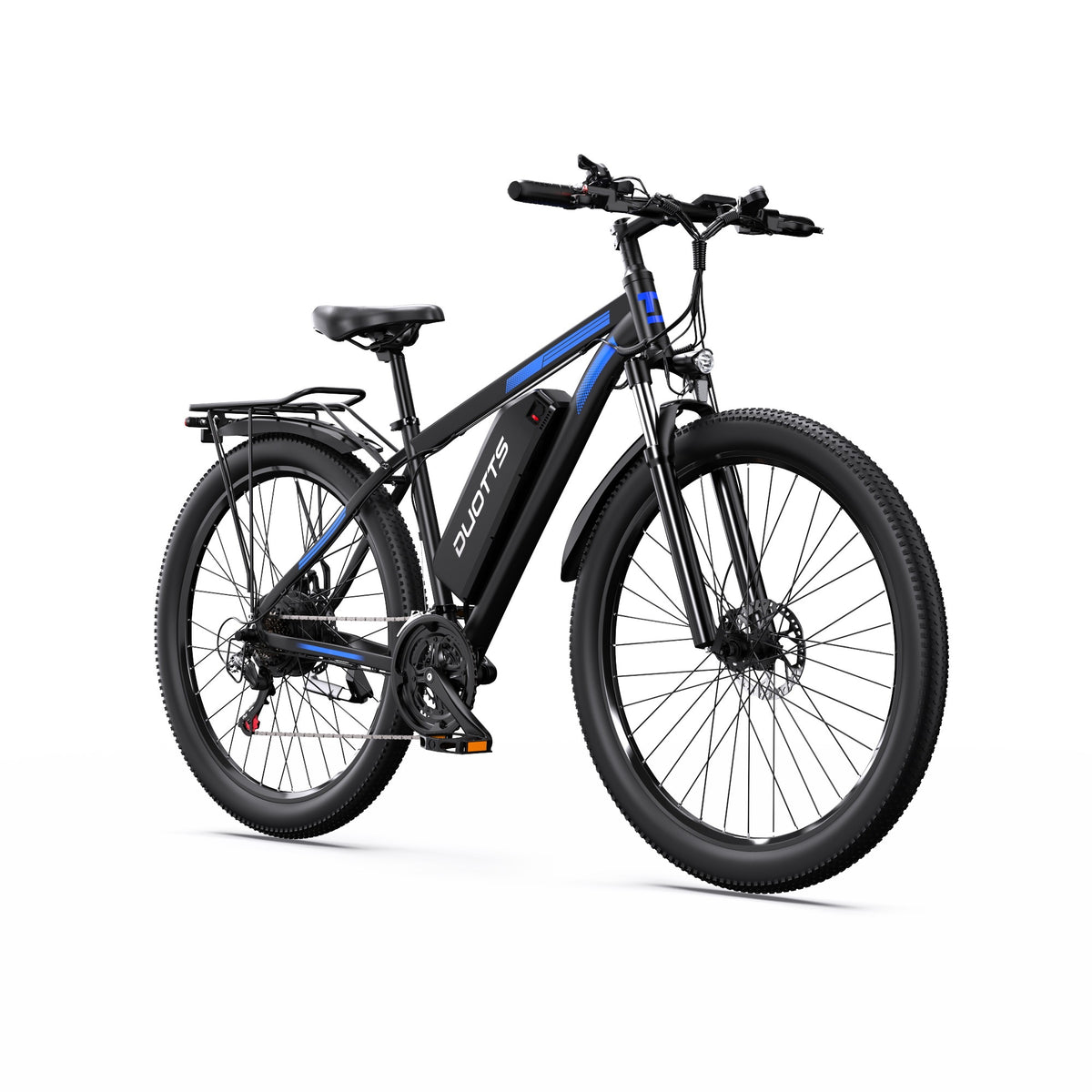

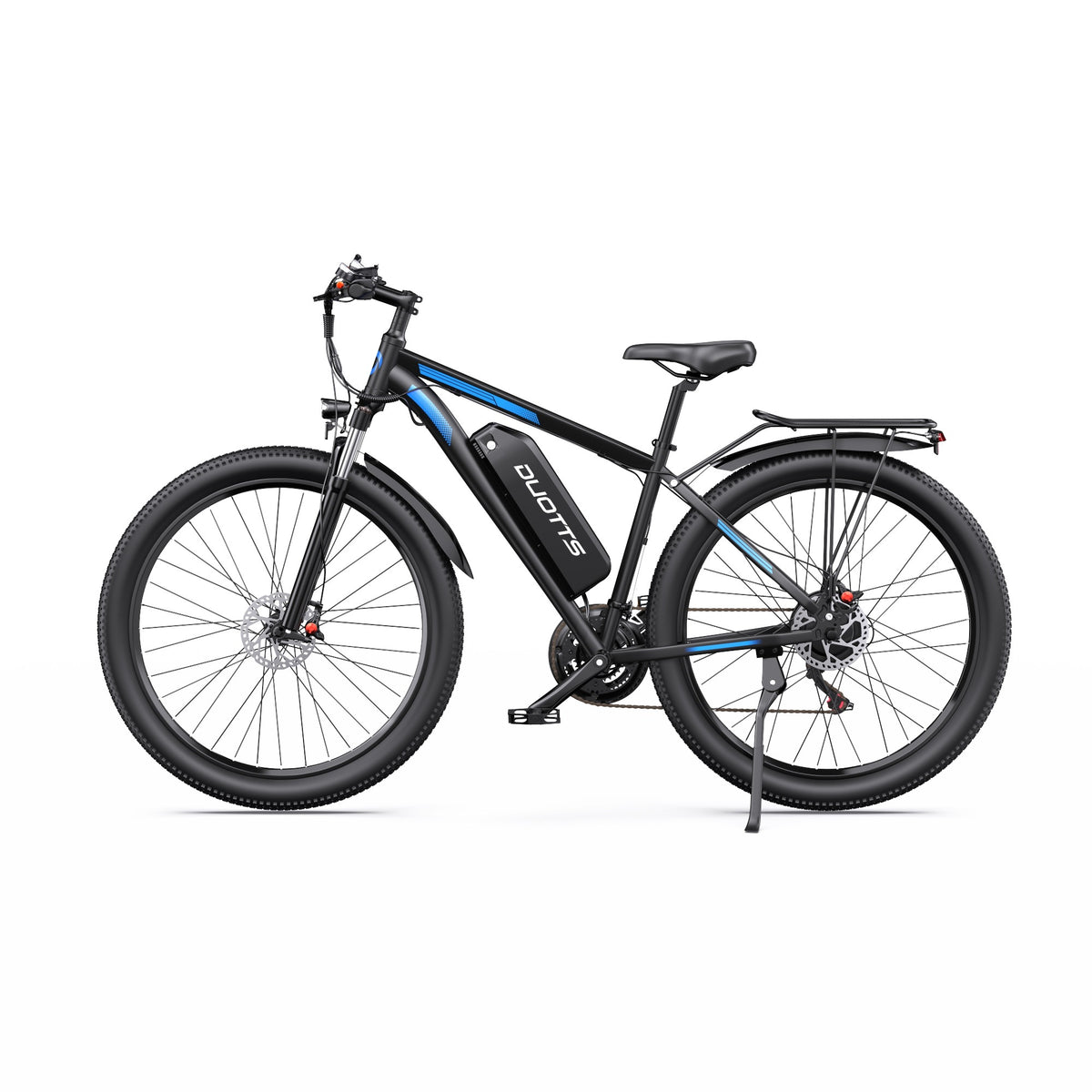

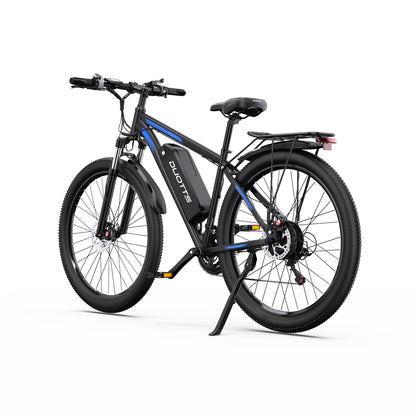

DUOTTS C29-S Electric Bike
The DUOTTS C29-S combines a 750W rear hub motor, a 48V 12Ah battery and 26-inch wheels in a practical aluminium-frame electric bike. Hydraulic disc brakes, front suspension and a Shimano Tourney 21-speed drivetrain make it a versatile option for everyday riding on suitable routes.
750WRear Hub Motor
576WhBattery
50–60kmPedal-Assist Range
26-inchWheels
Key Features

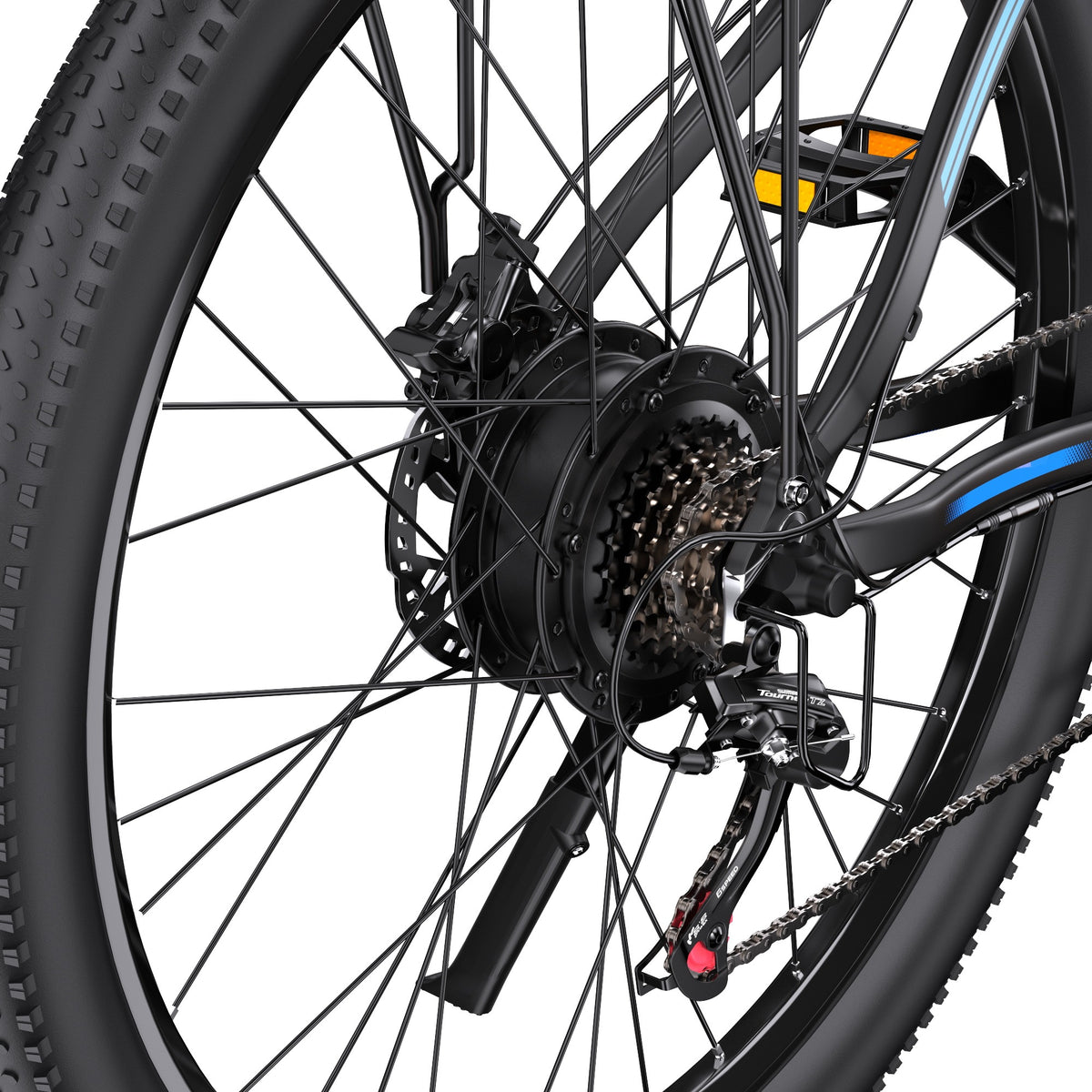

- 750W Rear Hub Motor — 48V motor with a specified torque of 65Nm.
- 48V 12Ah Battery — 576Wh nominal capacity using Yuandong 18650 cells.
- Pedal-Assist Range — Approximately 50–60km in pedal-assist mode, subject to riding conditions.

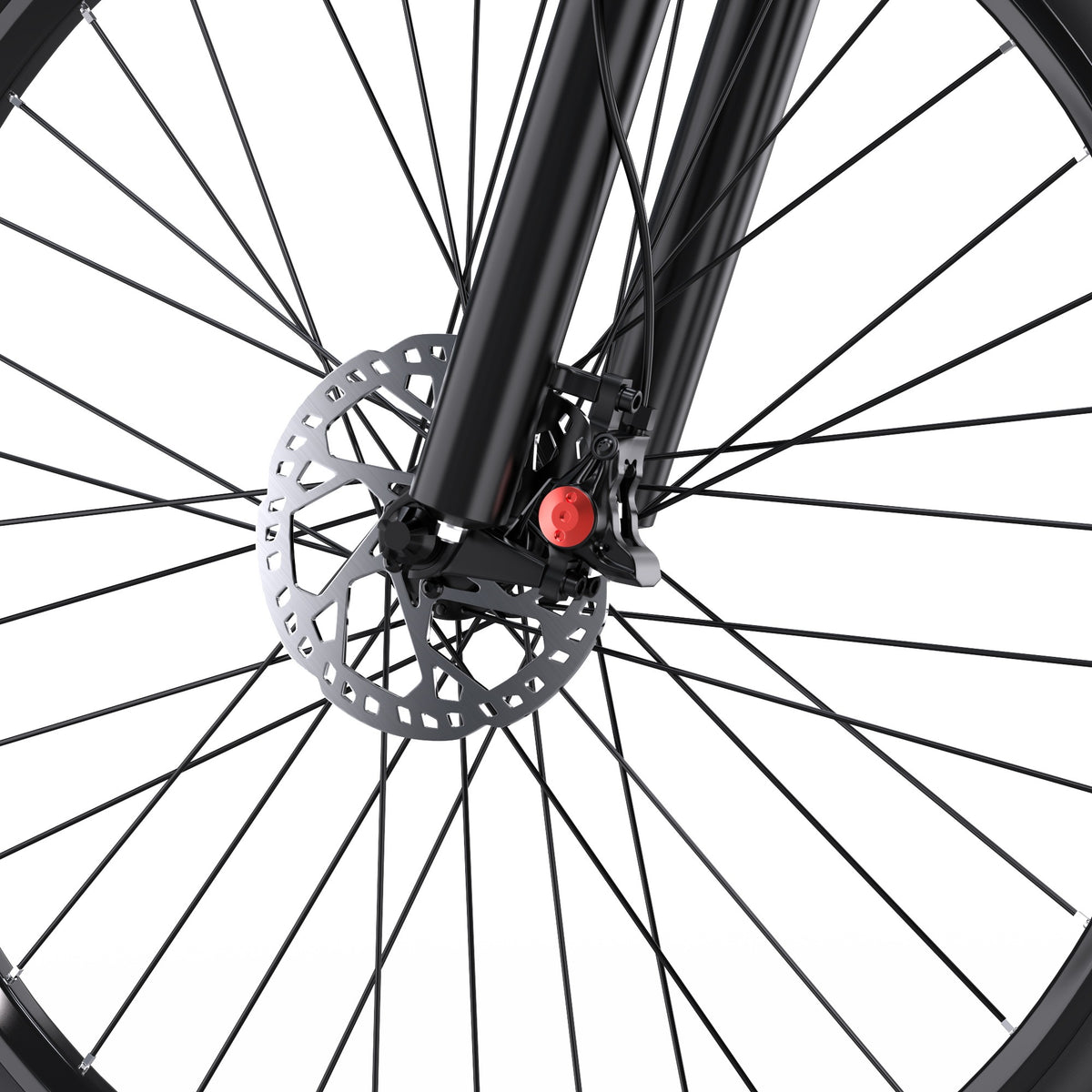

- Hydraulic Disc Brakes — ZOOM hydraulic brakes with 160 × 2.3mm rotors.

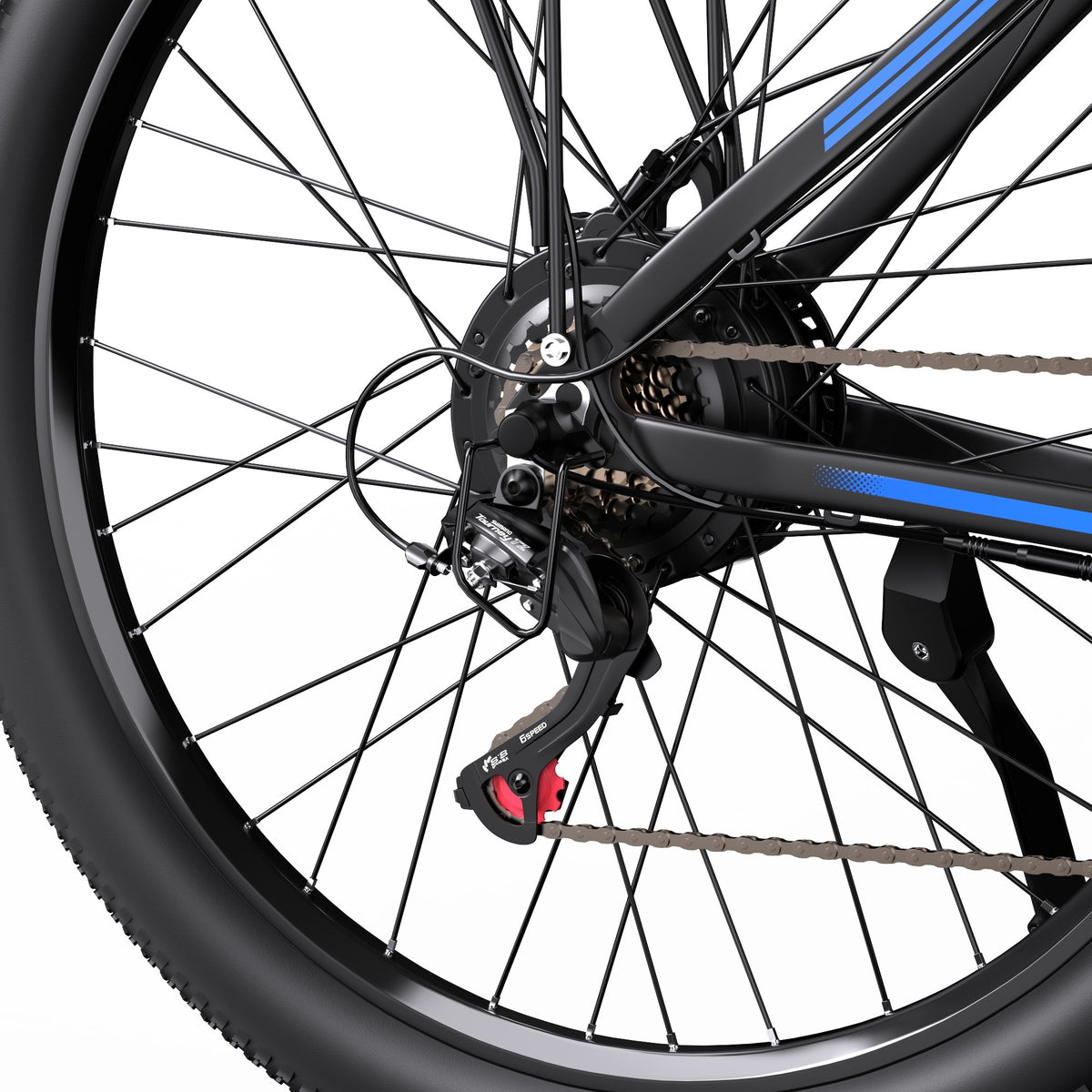

- 21-Speed Drivetrain — Shimano Tourney 3×7-speed gears for varied riding conditions.

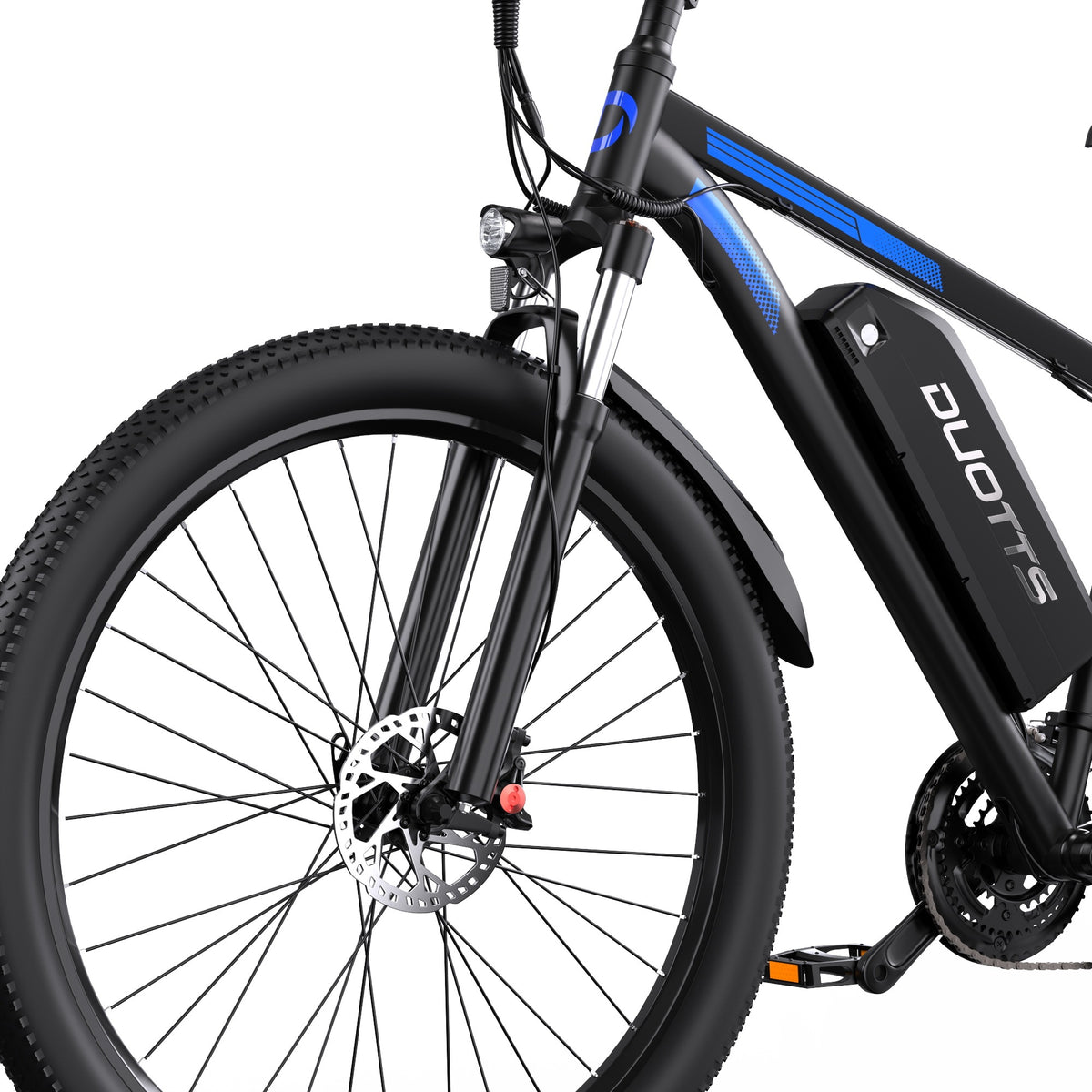

- Front Suspension — 100mm fork travel with a lockout function.

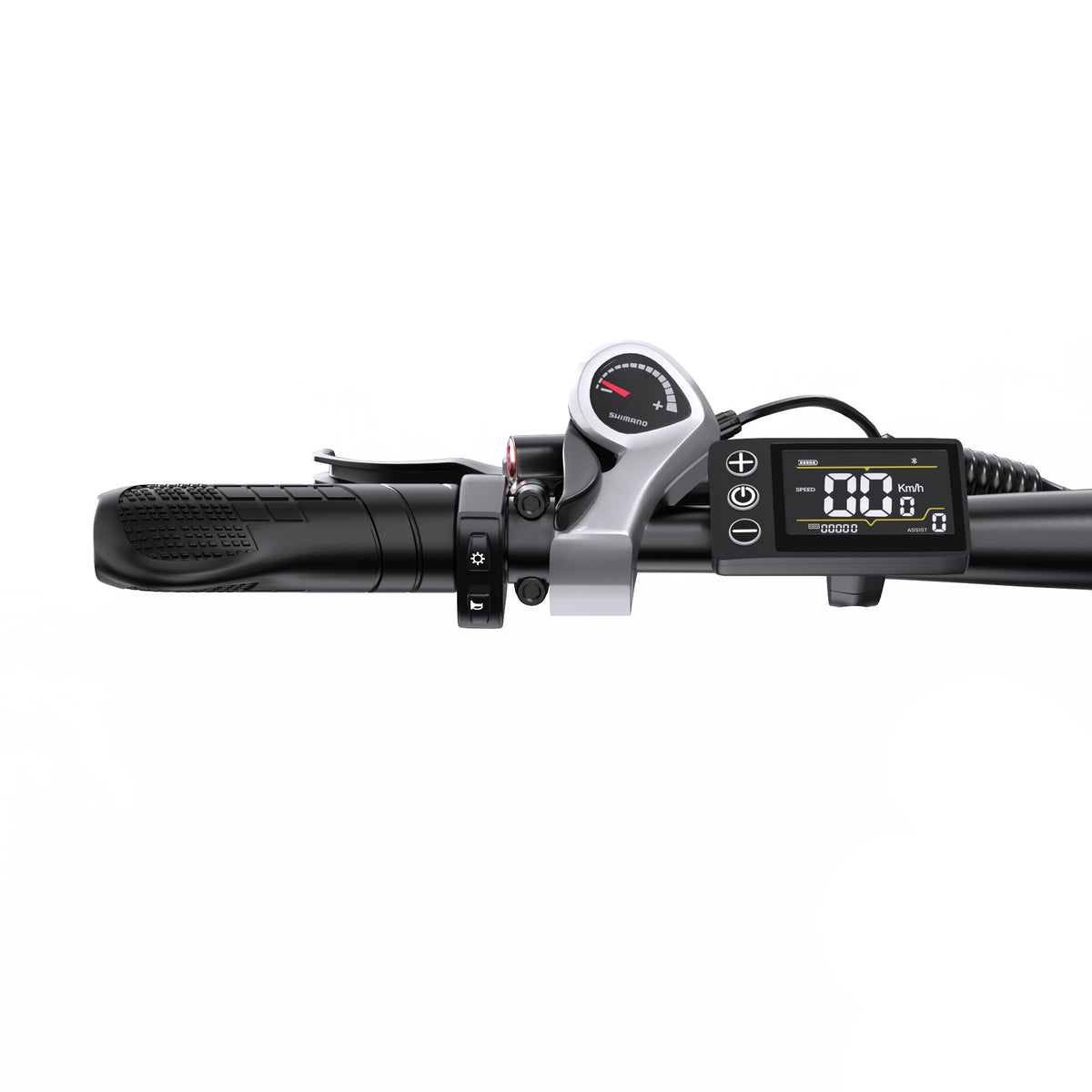

- Bluetooth Display — S869 display with Bluetooth and app connectivity.
- 26-Inch Tyres — 26 × 2.125-inch tyres with front and rear mudguards.
Technical Specifications
| Model | DUOTTS C29-S Electric Bike |
| Frame | Aluminium alloy |
| Motor | 48V 750W rear hub motor |
| Sensor | Speed sensor |
| Display | S869 display with Bluetooth and app connectivity |
| Folding | Non-folding |
| Front Suspension | 100mm travel; lockout; non-adjustable |
| Rear Suspension | None |
| Drivetrain | Shimano Tourney 3×7-speed |
| Brakes | ZOOM hydraulic disc brakes; 160 × 2.3mm rotors |
| Mudguards | Front and rear plastic mudguards |
| Factory Assist Speed Limit | 25km/h |
| Factory Throttle Speed Limit | 25km/h |
| Assist Levels | 0–5 (level 0: no motor assistance) |
| Water Resistance | IPX4 |
| Charger | 54.6V 2A |
| Charging Time | 7–8 hours |
| Maximum Load | 150kg |
| Battery | 48V 12Ah (576Wh); Yuandong 18650 2600mAh cells |
| Motor Torque | 65Nm |
| Pure Electric Range | Approximately 25–30km |
| Pedal-Assist Range | Approximately 50–60km |
| Tyres | 26 × 2.125 inches; 30 TPI; no reflective strips |
| Recommended Rider Height | 155–180cm |
| Net Weight | 24kg |
| Gross Weight | 31.9kg |
| Bike Dimensions | 170 × 68 × 100cm |
| Carton Dimensions | 141 × 24 × 76cm |
| Rear Light | K-code rear light; no brake-light or turn-signal function |
What's Included
- Charger and user manual
- 16-in-1 installation tool
- Twist-grip throttle
- Pedals and quick-release axle
- Motor shaft protective sleeve
- Air pump and phone bag
